HMI Human Machine Interface tools supporting multi language interfaces and flexible configuration for global industrial

Product Description:

Designed with versatility in mind, this HMI is a fully programmable panel that allows users to customize the interface according to specific application requirements.

Choose the HMI Human Machine Interface as your reliable partner in seamless human-machine communication, and experience the benefits of a modern, efficient, and affordable automation solution.

Features:

✅ 7" high-brightness touch panel
✅ Onboard Wi-Fi for remote monitoring & data logging
✅ Robust enclosure, industrial-grade durability
✅ Easy integration with PLCs, sensors & controllers
✅ Cost-effective without compromising quality

Technical Parameters:

Part Number		MR0701NN	MR0701NE	MR0702NN	MR0702NE
Module	Index	Parameters
Display	LCD display	7 inch TFT
	resolutions	800*480		1024*600
	Brightness	400cd/㎡		400cd/㎡
	contrast	500:1		1000:1
	backlight	LED
	Backlight life	＞30,000 hours
	color	16.77M, 24 bit
	Visua Angle	60'/75'/75'/75'
Touch	Touch Screen	4-wire resistive type
	Touch accuracy	Length (x-axis) ±2%; Width (y-axis) ±2%
Memory	Flash	128MB		128MB
	RAM	64MB		128MB
CPU		ARM Cortex-A7 Dual core 1GHz

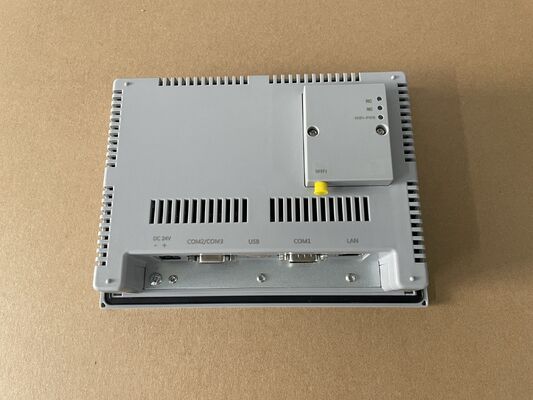

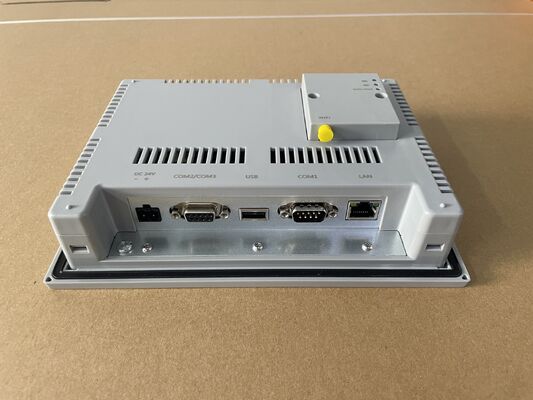

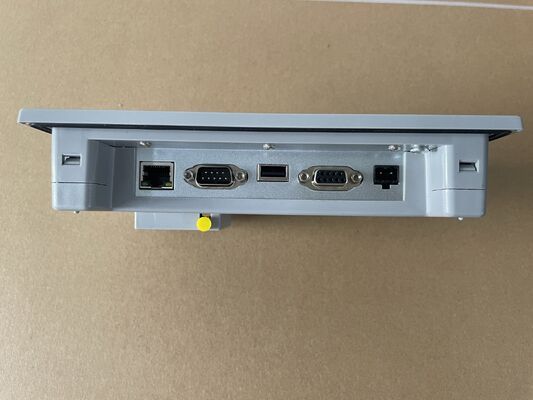

Communication ports	USB Host	USB 2.0*1
	RS-232	COM1
	RS-485	COM2:2W/4W；COM3:2W
	Ethernet	Not support	10/100Mbps self-adaption	Not support	10/100Mbps self-adaption
	4G Remote	Extensible
RTC		Built-in real-time clock
Power	Input Voltage	DC 24V ( 12-28VDC OK to work)
	Rated power	10W (420mA@24VDC)
	Power Isolation	Built-in
	Withstand voltage	500VAC for one minute
	Insulation Impedance	50MΩ@500VDC
Structure	Dimension	212*156*45 mm

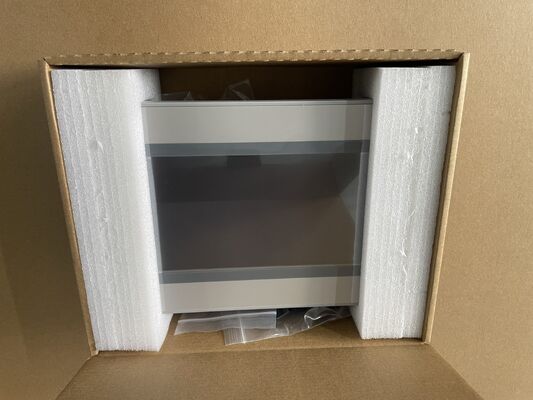

	Packed Dimension	255*205*80 mm
	Hole	192*138mm
	Mounting	Panel Mounting
	Weight	About 0.9Kg with inner box
	Shell Material	Engineering Plastics
	Mechanical Vibration	10 to 25Hz(X axis,Y axis,Z axis 2G 30 minutes)
Operating Environment	IP Grade	Panel:IP65；Rear cover:IP20
	Temperature	0-50℃(32°-122°F)
	Humidity	10%-90% (No condensation)
	Storage Temperature	-20-60℃(-4°--144°F)
Certification	CE	CE Certification No.: LCS211214020AE
Software		Smart Manager PRO V1.2.28 or updated version

Applications:

Factory machine control & monitoring

HVAC system management

Smart agriculture (greenhouse, irrigation)

Automated packaging lines

CNC & industrial robot interfaces

Energy management systems

Remote data logging & diagnostics

Smart building automation

EV charging station control

Food & beverage processing lines

Customization:

OEM/ODM welcome.
Shipped worldwide.
