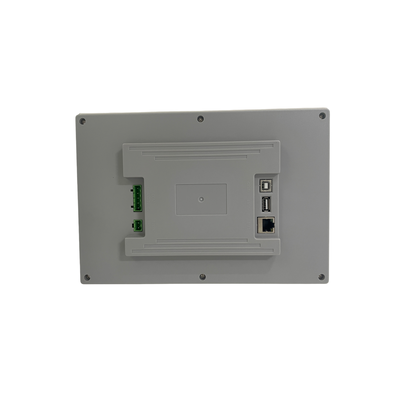

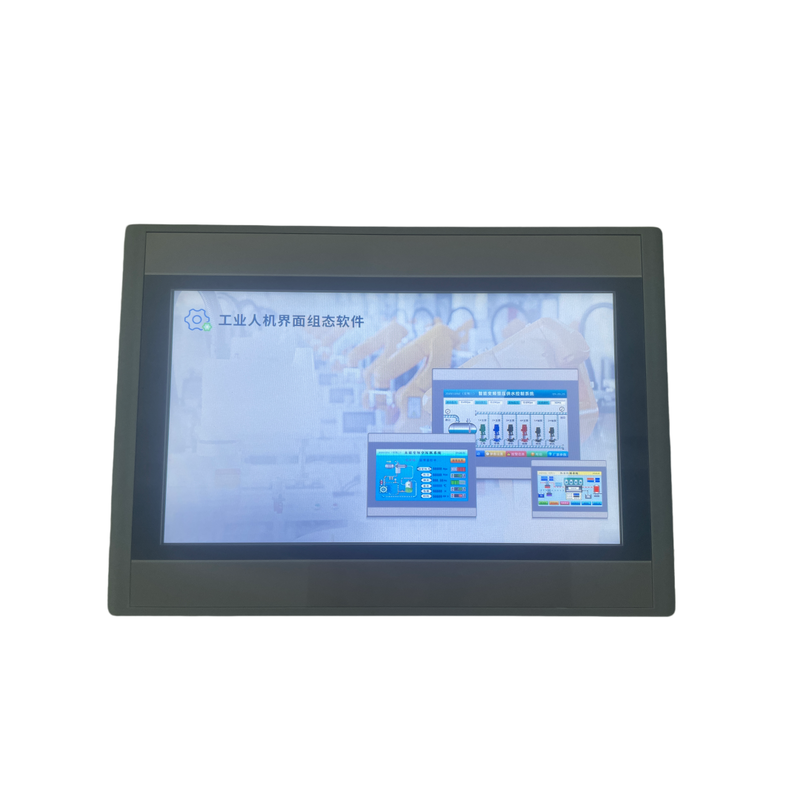

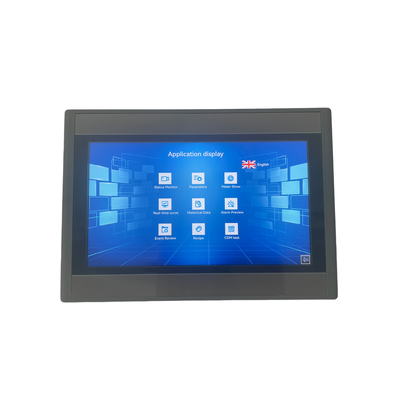

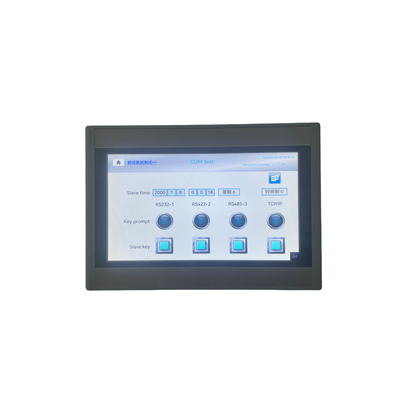

10Inch TFT LCD Person Machine Interface RS232 RS485 64MB RAM Modbus

10Inch TFT LCD Person Machine Interface RS232 RS485 64MB RAM Modbus

10Inch TFT LCD Person Machine Interface RS232 RS485 64MB RAM Modbus
10Inch TFT LCD Person Machine Interface RS232 RS485 64MB RAM Modbus
Basic Information
Place of Origin: China
Brand Name: Lensen
Certification: CE
Model Number: LS-HMI10
Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: standard carton
Delivery Time: 2-8 days
Payment Terms: T/T
Supply Ability: 6000pcs/month
Contact Now
Size: 10'' TFT Resolution: 1024*600
Color: 24bits CPU: A8 600MHz 32bit
Serial: Male，RS485/RS232/RS422 Rated   Power: 7.2W
High Light:

10Inch TFT Person Machine Interface

,

TFT LCD Touch Screen Person Machine Interface

,

RS232 HMI User Interface

10Inch HMI TFT LCD Touch Screen Human Machine Interface RS232 RS485 CNC Controller 64MB RAM Modbus

Features
1. High-precision/high-reliability resistive touch panel.
2. 60,000 TFT true-color displays, all series can be displayed vertically.
3. Support various formats of static pictures and GIF animation.
4. Support all fonts provided by windows.
5. Provide a large number of vector libraries and component libraries.
6. The button sound and alarm sound can be set by yourself.
7. Convenient drawing components and fully functional editing components allow users to quickly design pictures at will.
8. Multi-language, supports displaying multiple languages in the same screen, and has the function of a translator.
9. Multiple communication protocols, support each communication port to connect with multiple controllers.
10. Fast Running: 200％ increase in operating speed, 50％ reduction in memory usage.
11. Convenient Communication Protocol: Simultaneously support multiple communication protocols Modbus RTU/ASCII,
Freeport protocol TCP/IP protocol.
12. Flexible Design: There are complete types of graphic elements, and programming is simple and convenient.

Features of HMI Software eView:
Rich language
· English, Spanish, Thai,etc to program your HMI
· Support hundreds of languages display
. And more are continuing to develop
Powerful
· Engineering conversion ability
· Data scheduling function
Sound output
· You can set the button sound and alarm sound by yourself
· Import and export sound files
485 smart online
· When slave is online again, the master and the slave are connected again
Simplicity
· Support gesture up, down, left and right swipe operation

Technical Parameters:
Display: 10'' TFT LCD Screen
Resolution:
10'': 1024*600
Dimensions (mm):
10'': 275*194*36
Cut-out Size (mm):
10'': 262*180
Display Size (mm):
10'': 222*125
Power Consumption:
10'': 145mA/24V
RAM: 64MB
Flash: NOR Flash 16MB
CPU: 32bit CPU 408MHz
Memory: 128MB Flash ROM
Communication Port: Comes with 1 RS232, 1 RS485
Power Supply: 12-24VDC±10%<150mA@24VDC
Backlight Type: LED
Backlight Life: 60000 hours
Protection level: IP65 (front panel)
Working Environment Temperature: 0~50%
Working Environment Humidity: 20~90%RH
Shell material:
7": Engineering plastic PET+PC
10'': Engineering plastic ABS+PC
Perpetual calendar: Yes
Certification: CE
FCC compatibility: Complies with FCC Class A
HMI Manual: Click here to download
HMI Software: Provide free software after purchase
Cable: Provide 1 HMI software download cable (Type-C port)
