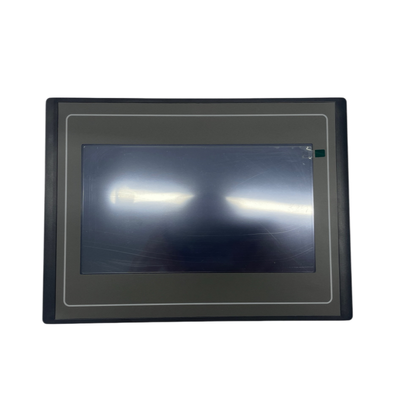

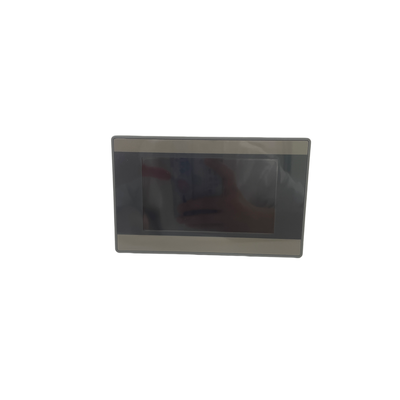

Product Description:
This is a low cost HMI panel, with small size 4.3inch, idea for limited space application. industrial level, surprised price and performance.
Features:
- Product Name: HMI Human Machine Interface
- Mounting Type: Panel
- Input Voltage: DC 24V
- Interface Type: RS232/RS485/USB/
- High contrast ratio of 500:1 for clear visibility
- Supports Com Port HMI communication for seamless integration
- Compact 4.3inch HMI display for efficient space usage
- Programmable panel enabling customizable user interfaces
Technical Parameters:
| Part Number |
ER0501NN |
ER0501NE
(Only for large quantity) |
| |
|
| Section |
Index |
Parameters |
| Display |
LCD display |
4.3 inch TFT |
| resolutions |
480×272 |
| Brightness |
300 cd/m² |
| contrast |
500:1 |
500:1 |
| backlight |
LED |
| Backlight life |
＞20,000 hours |
| color |
24 Bit/16.77M |
| Visua Angle |
50'/60'/60'/60' (T/B/L/R) |
| Touch |
Touch Screen |
4-wire resistive type |
| Touch accuracy |
Length (x-axis) ±2%; Width (y-axis) ±2% |
| Memory |
Flash |
128M |
| DDR3 |
64MB |
| CPU |
ARM Cortex-A7 Dual core 1.2GHz |
| Communication ports |
USB Host |
USB 2.0*1 |
| RS-232 |
COM1 |
| RS-485 |
COM2 |
| Ethernet |
not support |
10/100Mbps self-adaption * 1 |
| 4G Remote |
not support |
| RTC |
Built-in real-time clock |
| Power |
Input Voltage |
24VDC Range 9-28V |
| Rated power |
<3W |
| Power Isolation |
No |
| Power Interruption Tolerance |
<5mS |
| Structure |
Dimension |
140*93*33mm |
| Packed Dimension |
190*135*63 mm |
| Hole |
133*82mm |
| Mounting |
Panel Mounting |
| Weight |
About 0.3Kg with inner box |
| Shell Material |
Engineering Plastics |
| Mechanical Vibration |
10 to 25Hz(X axis,Y axis,Z axis 2G 30 minutes) |
| Operating Environment |
IP Grade |
Panel:IP65；Rear cover:IP20 |
| Temperature |
0-50℃(32°-122°F) |
| Humidity |
10%-90% (No condensation) |
| Storage Temperature |
-20-60℃(-4°--144°F) |
| Certification |
CE |
CE Certification No.: LCS211214020AE |
| Software |
Smart Manager PRO V1.2.28 or updated version |
Applications:
4.3-inch HMI displays are versatile and suitable for numerous applications, particularly where a compact, reliable, and intuitive interface is required.
Industrial Automation: Serving as operator interfaces for machinery, connecting to PLCs, servos, and VFDs for real-time monitoring, parameter adjustment, and alarm notification. Also used for equipment such as packaging machines, CNC devices, and labeling equipment
Process & Systems Control: For monitoring and managing SCADA systems, process control, access control, and system status displays in both industrial and commercial settings.
Customization:
Introducing the Lensen ER0501NN, a high-quality 4.3inch HMI designed for efficient human-machine interaction. This Low Cost HMI offers reliable performance with a bright 400cd/m2 LCD display, ensuring clear visibility even in challenging environments.
Manufactured in China and CE certified, the MR0501NE guarantees compliance with international standards. It features a convenient panel mounting type and includes a Com Port HMI interface for seamless connectivity with various devices.
We offer a minimum order quantity of 2 units with flexible pricing negotiable to suit your requirements. The product comes with standard packaging and a warranty of 1 year, ensuring long-term reliability and peace of mind.
With a supply ability of 100000pcs/month, we ensure prompt delivery within 1 week. Payment terms include T/T and Paypal for your convenience. The HMI is designed to operate within a storage temperature range of -20~60℃, making it suitable for diverse industrial applications.
