| Place of Origin: | China |
|---|---|
| Brand Name: | Lensen |
| Certification: | CE |
| Model Number: | LS-MR1001 |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiation |
| Packaging Details: | standard carton |
| Delivery Time: | 2-8 days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 6000pcs/month |
| Type: | 10'' TFT HMI | Resolution: | 1024*600 |
|---|---|---|---|
| Brightness: | 350nit | Port: | RS232, RS485, USB |
| Material: | Engineering Plastic | CPU: | ARM Cortex-A7 Dual Core 1GHz |
| High Light: | HMI Touch Screen Panel,10'' HMI Touch Screen Panel,HMI Touch Screen Panel 1024*600 |
||

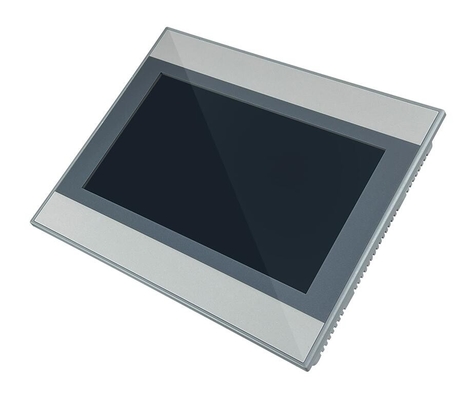

10'' HMI China Touch Screen Panel Ethernet Port or Com port
Feature
0.1" 1024 x 600 TFT LCD, LED Backlight
Fan-less Cooling System
COM2 and COM3 RS-485 support MPI 187.5K, please use one at a time* 1
PCB coating process ensures high reliability to resist from corrosion in harsh environment
Built-in Power Isolation
NEMA4 / IP65 Compliant Front Panel
| Type | Parameter | Value |
|
Display |
Screen size: | 10.1" TFT LCD |
| Resolution: | 1024*600 | |
| Brightness(cd/m2): | 350 | |
| Contrast Ratio: | 500:1 | |
| Backlight Type : | LED | |
| Backlight Life Time : | >50,000 hrs. | |
|
Colors :
|
16.7M | |
| LCD Viewing Angle: | (T/B/L/R) : 80/80/80/80 | |
| Touch screen | Touch Panel Type : | 4-wire Resistive Type |
| Touch Panel Accuracy : | Active Area Length(X)±2%, Width(Y)±2% | |
| Memory | Flash : | 128 MB |
| RAM : | 128 MB | |
| Processor | ARM Cortex-A7 1.2GHz | |
| Port | USB Host I/O Port: | USB 2.0 x 1 |
| RS232: | COM 1, COM3 | |
| RS485: | COM2: 2W/4W, COM3: 2W | |
| Ethernet: | 10/100Mbps Base-T x 1 | |
| 4G: | Expandable | |
| RTC | Built-in | |
| Power | Input Power : | 9-36±10% VDC |
| Power Consumption : | 620mA@24VDC | |
| Power Isolation : | Built-in | |
| Voltage Resistance : | 500VAC (1 min.) | |
| Isolation Resistance : | Exceed 50MΩ @ 500VDC | |
| Dimension | Vibration Endurance : | 10 to 25Hz (X, Y, Z direction 2G 30 minutes) |
| Dimension : | 272*215*43mm | |
| Enclosure : | Plastic | |
| Panel Cutout : | 260 x 202 mm | |
| Mount : | Panel mount | |
| Weight Approx. : | 1.2 kg | |
| Working Condition | Protection Structure : |
IP65 Compliant Front Panel, IP20 Compliant Back Panel |
| Storage Temperature : | -20°~60°C (-4° ~ 140°F) | |
| Operating Temperature : | 0° ~ 50°C (32° ~ 122°F) | |
| Relative Humidity : | 10% ~ 90% (non-condensing) | |
| Certificate | CE: | Complaint |
| Software | PC software: | Smart manager PRO V2.05 or higher version |
