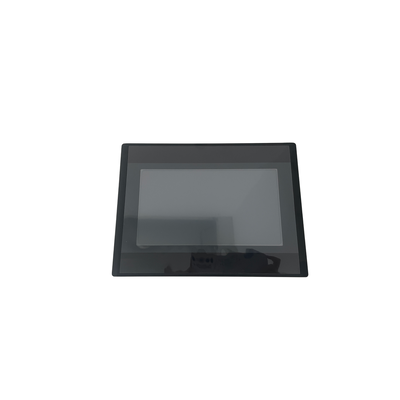

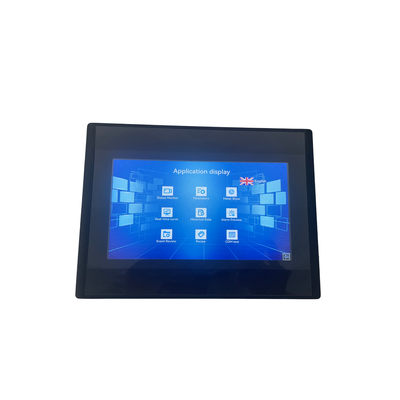

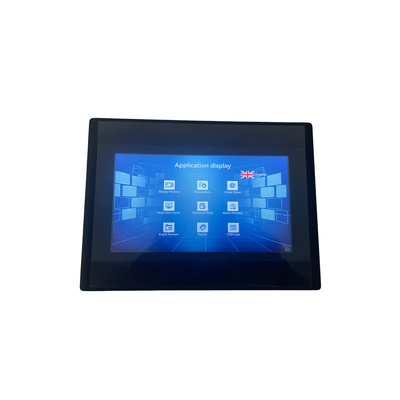

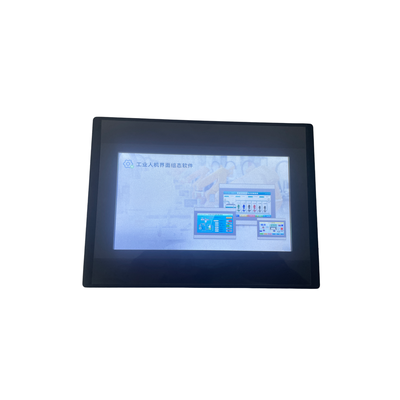

ODM 7'' HMI Touch Screen Panel Com Port Or Ethernet Port 350nit

ODM 7'' HMI Touch Screen Panel Com Port Or Ethernet Port 350nit
ODM 7'' HMI Touch Screen Panel Com Port Or Ethernet Port 350nit ODM 7'' HMI Touch Screen Panel Com Port Or Ethernet Port 350nit

Large Image :  ODM 7'' HMI Touch Screen Panel Com Port Or Ethernet Port 350nit

Product Details:
Place of Origin: China
Brand Name: Lensen
Certification: CE
Model Number: LS-MR1001
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: Negotiation
Packaging Details: standard carton
Delivery Time: 2-8 days
Payment Terms: T/T, Paypal
Supply Ability: 6000pcs/month
Detailed Product Description
Type: 10'' TFT HMI Resolution: 1024*600
Brightness: 350nit Port: RS232, RS485, USB
Material: Engineering Plastic CPU: ARM Cortex-A7 Dual Core 1GHz
High Light:

ODM HMI Touch Screen Panel

,

7'' HMI Touch Screen Panel

,

350nit HMI Touch Screen Panel

7'' HMI Manufacturer China ODM Touch Screen Panel Com Port or Ethernet Port



We are China manufacturer of HMI. Now 4.3'', 7'', 10'' and 15.8'' panels are all available. Looking for distributors worldwide. We provide with low price and good quality. Welcome to contact and discuss more details.



Use this touch-screen display to easily and precisely control your applications. It comes with HMI software that covers all essential logic functions, letting you easily optimise the performance of your automated processes. The device has 64MB of onboard memory so it can quickly handle your inputs for efficient project monitoring. Its large 7-inch screen uses touch-based TFT technology for an intuitive user experience. With a resolution of 800 by 480px, it gives a clear picture even when handling complex information. Thanks to Ethernet connectivity, the unit offers you a secure link to your controller.



Suitable for Delta PLC Haiwell PLC,South Korea LS PLC MODBUS protocol communication Mitsubishi PLC Omron PLC Panasonic PLC Schneider PLC Siemens PLC Xinje PLC





Type Parameter Value











Display

Screen size: 10.1" TFT LCD
Resolution: 1024*600
Brightness(cd/m2): 350
Contrast Ratio: 500:1
Backlight Type : LED
Backlight Life Time : >50,000 hrs.

Colors :



16.7M
LCD Viewing Angle: (T/B/L/R) : 80/80/80/80
Touch screen Touch Panel Type : 4-wire Resistive Type
Touch Panel Accuracy : Active Area Length(X)±2%, Width(Y)±2%
Memory Flash : 128 MB
RAM : 128 MB
Processor   ARM Cortex-A7 1.2GHz
Port USB Host I/O Port: USB 2.0 x 1
RS232: COM 1, COM3
RS485: COM2: 2W/4W, COM3: 2W
Ethernet: 10/100Mbps Base-T x 1
4G: Expandable
RTC   Built-in
Power Input Power : 9-36±10% VDC
Power Consumption : 620mA@24VDC
Power Isolation : Built-in
Voltage Resistance : 500VAC (1 min.)
Isolation Resistance : Exceed 50MΩ @ 500VDC
Dimension Vibration Endurance : 10 to 25Hz (X, Y, Z direction 2G 30 minutes)
Dimension : 272*215*43mm
Enclosure : Plastic
Panel Cutout : 260 x 202 mm
Mount : Panel mount
Weight Approx. : 1.2 kg
Working Condition Protection Structure :

IP65 Compliant Front Panel,

IP20 Compliant Back Panel

Storage Temperature : -20°~60°C (-4° ~ 140°F)
Operating Temperature : 0° ~ 50°C (32° ~ 122°F)
Relative Humidity : 10% ~ 90% (non-condensing)
Certificate CE: Complaint
Software PC software: Smart manager PRO V2.05 or higher version
