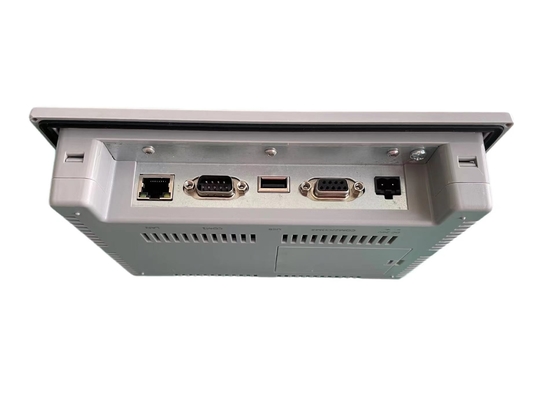

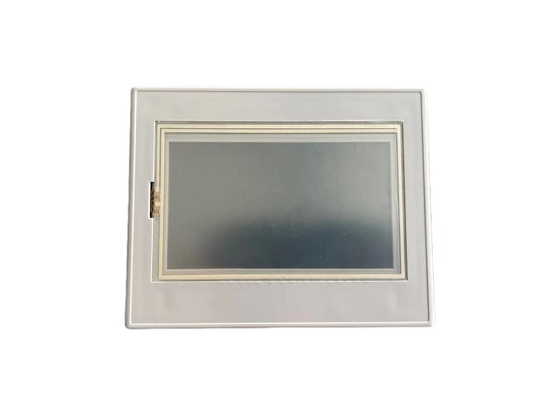

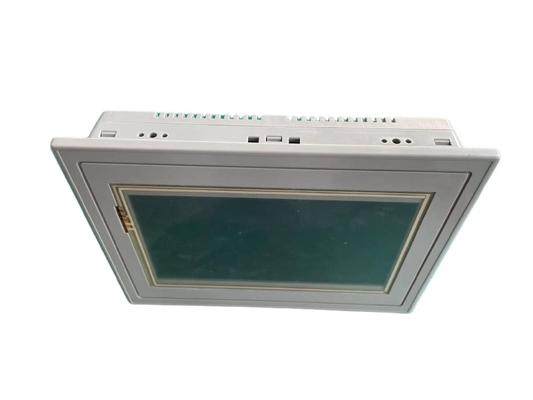

Expandable 7 inch Human Machine Interface RS232 RS485 USB And 4G

small.img.alt small.img.alt small.img.alt

Large Image :  Expandable 7 inch Human Machine Interface RS232 RS485 USB And 4G

Product Details:
Place of Origin: China
Brand Name: Lensen
Certification: CE
Model Number: LS0701NE
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: standard carton
Delivery Time: 2-8 days
Payment Terms: T/T
Supply Ability: 6000pcs/month
Detailed Product Description
Size: 7'' TFT Resolution: 800×480
Color: 16.7M CPU: ARM Cortex-A7 1.2GHz
Serial: USB, RS232, RS485 Power Consumption: 420mA@24VDC
High Light:

RS232 HMI Human Machine Interface


RS485 HMI Human Machine Interface


RS485 Man Machine Interface

Expandable 7 Inch Human Machine Interface RS232 RS485 USB And 4G


7'' Touch Screen 7'' Human Machine Interface RS232, RS485, USB and 4G Expandable


Type Parameter Value







Screen size: 7" TFT LCD
Resolution: 800*480
Brightness(cd/m2): 400
Contrast Ratio: 500:1
Backlight Type : LED
Backlight Life Time : >30,000 hrs.

Colors :


LCD Viewing Angle: (T/B/L/R) : 80/80/80/80
Touch screen Touch Panel Type : 4-wire Resistive Type
Touch Panel Accuracy : Active Area Length(X)±2%, Width(Y)±2%
Memory Flash : 128 MB
RAM : 128 MB
Processor   ARM Cortex-A7 1.2GHz
Port USB Host I/O Port: USB 2.0 x 1
RS232: COM 1
RS485: COM2: 2W/4W, COM3: 2W
Ethernet: 10/100Mbps Base-T x 1
4G: Expandable
RTC   Built-in
Power Input Power : 9-36±10% VDC
Power Consumption : 420mA@24VDC
Power Isolation : Built-in
Voltage Resistance : 500VAC (1 min.)
Isolation Resistance : Exceed 50MΩ @ 500VDC
Dimension Vibration Endurance : 10 to 25Hz (X, Y, Z direction 2G 30 minutes)
Dimension : 202*165*43mm
Enclosure : Plastic
Panel Cutout : 192 x 138 mm
Mount : Panel mount
Weight Approx. : 0.8 kg
Working Condition Protection Structure :

IP65 Compliant Front Panel,

IP20 Compliant Back Panel

Storage Temperature : -20°~60°C (-4° ~ 140°F)
Operating Temperature : 0° ~ 50°C (32° ~ 122°F)
Relative Humidity : 10% ~ 90% (non-condensing)
Certificate CE: Complaint
Software PC software: Smart manager PRO V2.02 or higher version
