1W 2km LOS 4-20mA Wireless Analog I/O Module

1W 2km LOS 4-20mA Wireless Analog I/O Module
1W 2km LOS 4-20mA Wireless Analog I/O Module 1W 2km LOS 4-20mA Wireless Analog I/O Module 1W 2km LOS 4-20mA Wireless Analog I/O Module 1W 2km LOS 4-20mA Wireless Analog I/O Module

Large Image :  1W 2km LOS 4-20mA Wireless Analog I/O Module

Product Details:
Place of Origin: China
Brand Name: Lensen
Model Number: LS-RAI04+LS-RAO04
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: Negotiation
Packaging Details: standard carton
Delivery Time: 2-6 days
Payment Terms: T/T, Western Union
Supply Ability: 6000pcs/month
Detailed Product Description
Frequency: 433MHz Power Output: 1W
Distance: 2km LOS Program: No Need
Input: 4 Channels 4-20mA Output: 4 Channels 4-20mA
High Light:

2km LOS Analog I/O Module

,

1W Analog I/O Module

,

4-20mA Wireless Transmission Module

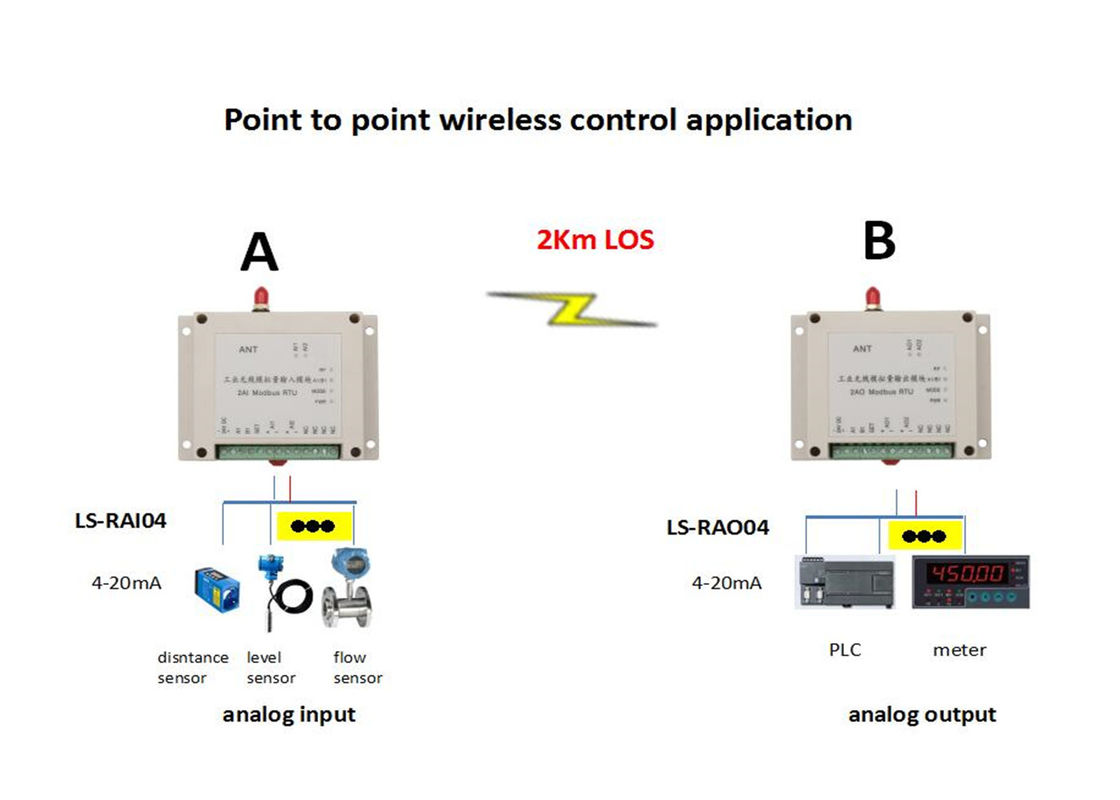

Wireless Analog I/O Module Sensor's 4-20mA Signal Wireless Transmission to PC/PLC

Parameter:

LS-RAI04 wireless analog acquisition module

LS-RAI04 Modbus RTU is a 1W I/O module, 4 analog inputs, 1 RS485 (wireless RS485 customizes). Wireless control 2km-3km. Use for sensor data wireless collection.

Frequency 433MHz or 450MHz or 470MHz
Power output 1W
Products 4AI
Input type 4-20mA or 0-5V or 0-10V
Output type 4-20mA or 0-5V or 0-10V
Resolution ratio 24 bit
Accuracy ±0.02%
Power supply 9-36V DC usually use 24V DC
Interface RS-485
Channel No. 15ch default, can program via DIP switch
Antenna Sucker antenna with 1.5m cable
Working temperature -35 °C~+75 °C industrial
Working humidity 10%-90% relative humidity, no condensation
Dimension 115×90×40(mm)
Fix way Standard 3.5 inch industrial DIN guild rail



LS-RAO04 wireless analog acquisition module

LS-RAO04 Modbus RTU is a 1W I/O module, 2 analog outputs, 1 RS485 (wireless RS485 customizes). Wireless control 2km-3km. Use for sensor and PLC/HMI wireless communication.


Frequency 433MHz or 450MHz or 470MHz
Power output 1W
Products 4AO
Input type 4-20mA or 0-5V or 0-10V
Output type 4-20mA or 0-5V or 0-10V
Resolution ratio 24 bit
Accuracy ±0.02%
Power supply 9-36V DC usually use 24V DC
Interface RS-485
Channel No. 15ch default, can program via DIP switch
Antenna Sucker antenna with 1.5m cable
Working temperature -35 °C~+75 °C industrial
Working humidity 10%-90% relative humidity, no condensation
Dimension 115×90×40(mm)
Fix way Standard 3.5 inch industrial DIN guild rail










Application area
Emergency Notification
Receive critical status updates by email, phone, cell phone, or PDA if equipment fails
Conveyor Control
Control a conveyor motor remotely
Remote Control Relay
Use dry contact inputs to control a remote relay.
Problem Notification
Save time in large facilities by activating an overhead notification light when a problem occurs, letting the supervisor know exactly where to go.
Dust Suppression
Use wireless I/O module to operate your dust
Data Logging
Wirelessly acquire and log various data from a remote location using our analog I/O module
Stacker Control
Start and stop your stacker/reclaimir. Connect PLC in control center with stacker and reclaimer.
Proximity Detection
Mount a transmitter with adjustable range on heavy equipment, mount a receiver in a “blind spot,” and then set up the receiver to sound an alarm or turn on a light whenever the equipment is operating in the area.
Chemical Level Monitoring
Monitor water chlorination or other chemicals remotely.
Traffic Signals
Avoid having to lay new wire by using wireless transmitters and receivers to control traffic signs such as “Railroad Crossing Ahead” when a train is present.
Grain Elevators
Our wireless transmitters and receivers can be used to monitor grain elevator conditions or control different functions. To collect RS485 data. To monitor temperature and humidity in Grain.
Freight Loading
Digital I/O module for crane control and analog I/O module to send the load information wirelessly to another location.
