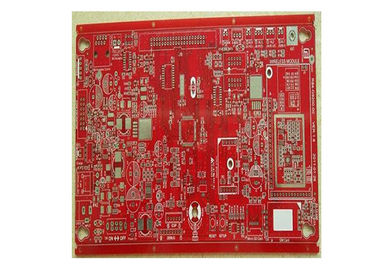

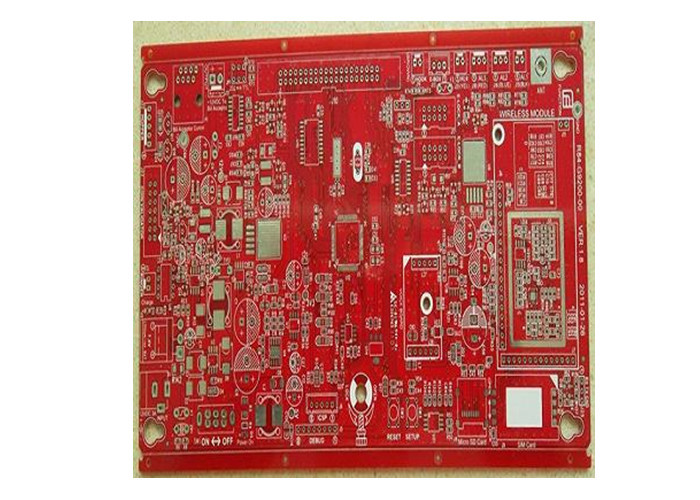

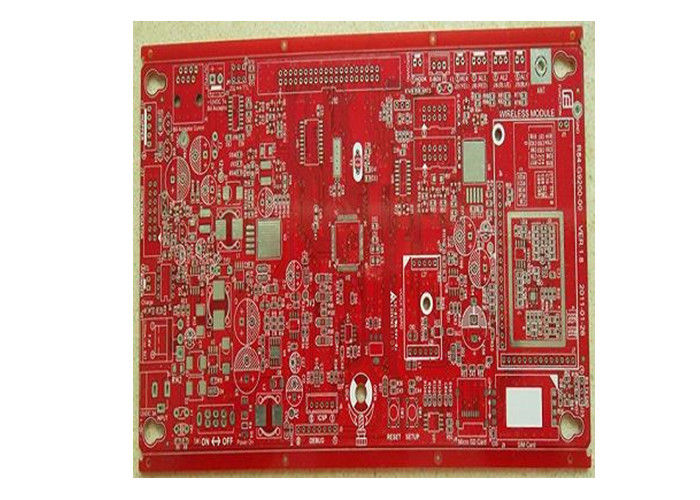

RF Multilayer PCB Board , Single / Double Sided Pcb Prototype Board Red Color

RF Multilayer PCB Board , Single / Double Sided Pcb Prototype Board Red Color
RF Multilayer PCB Board , Single / Double Sided Pcb Prototype Board Red Color
Basic Information
Place of Origin: China
Brand Name: KSE
Certification: UL, ISO
Minimum Order Quantity: 5
Price: USD10
Packaging Details: standard
Delivery Time: 15-35 days
Payment Terms: T/T, Paypal, Western Union
Supply Ability: 1000000pcs/month
Contact Now
Layer: Multi-layer Color: Red
Size: Choose Thickness: Choose
Highlight:

multilayer printed circuit board

,

multi layer circuit board

Multi-layer RF board Industry Automation Products PCB China PCB supplier





Our factory also provide PCB and PCBA service.

We can offer 24 hours fast sample service for single-sided and double-sided PCBs, 72 hours service for 4 to 10 layers PCB. The factory got ISO9001:2008 from DEKRA. In 2011, got UL and CQC. In 2013, passed ISO/TS16949 from DEKRA also.

Please send us the gerber in RS274X format for quotation.





Details

Thickness: 0.6mm, 0.8mm, 1.0mm,1.2mm,1.6mm, 2.0mm,2.4mm,3.0mm,

3.2mm optional

Copper thickness: 1OZ, 2OZ, 3OZ optional

Surface finish: HASL, Lead free HASL, ENIG, OSP, gold finger optional

Contour: CNC routing, Punching outline optional

Solder mask: green, blue, yellow, red, and black optional

Technical requirement: min trace: 4mil (0.1mm), min hole: 0.2mm (8mil),

Quality stable, price competitive





Item Technical Parameters Remarks
Min. Line Width(mil) 3/4 Partial 3mil lines is allowed
Min. Space(mil) 3/4 Partial 3mil lines is allowed
Min. Annular Ring Width(mil) VIAS:3mil Remained ring width means the distance between the hole edge to the ring outskirt
Component Holes: 6mils

Min. Hole Size



 Board Thickness<2.0mm 0.1mm Refers to the finished hole
Board Thickness>=2.0mm Aspect Ratio<=12 Refers to the finished hole
Max. Board Thickness Single and Double Sided 5.0mm
Multilayer 5.0mm

Min. Board Thickness



 Single and Double Sided 0.2mm
Multilayer 4 layers:0.4mm, 6 layers: 0.7mm, 8 layers:1.1mm, 10 layers:1.6mm
Max. Board Size Single and Double Sided 650 x 1100mm
Multilayer 650 x 1100mm
Distance between Line to Board edge Outline:0.25mm
V-CUT: 0.4mm
Max. Layers 18 layers
Solder mask Mask Window(mil) 2/4
Mask Bridge(mil) 6
Color Green Yellow Red Blue White Black
Legend Min. Line Width(mil) 5/8
Color White, Black, Yellow, ect.
Surface Plating HAL(with Pb free), Plated Ni/Au, Ag, Imm Ni/Au, Imm Sn, Ag, OSP etc.
Finished Board Thickness Tolerance:

0.2mm<T<0.5mm: ± 0.05mm;

T<0.8mm: ±10%

T≥0.8mm, ±8%

Tag:

multi layer circuit board

multilayer printed circuit board

printed circuit board assembly
