Rigid 4 Layer Multilayer PCB Board 1.5mm FR4 TG150 PI ENIG Surface Finished

large.img.alt
small.img.alt

Large Image :  Rigid 4 Layer Multilayer PCB Board 1.5mm FR4 TG150 PI ENIG Surface Finished

Product Details:
Place of Origin: China
Brand Name: Lensen
Certification: CE
Model Number: LS
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiation
Packaging Details: standard carton
Delivery Time: 2-8 days
Payment Terms: T/T
Supply Ability: 10000pcs/month
Detailed Product Description
Layer: 4 Material: FR4 TG150+PI
Board Thickness: 1.5mm Copper Thickness: 0.3±0.05mm
High Light:

Rigid Multilayer PCB Board

,

FR4 TG150 PI Multilayer PCB Board

,

ENIG 4 Layer PCB Board

4 Layer Rigid PCB

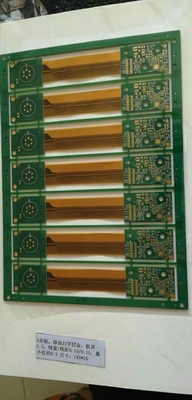

Rigid 4 Layer Multilayer PCB Board 1.5mm FR4 TG150 PI ENIG Surface Finished 0

Layer: 4L

Base Material: FR4 TG150+PI

Rigid PCB

Thickness: 1.5mm |

Rigid PCB: 3-4Layer

Flex PCB + PI

Stiffener Thickness: 0.3±0.05mm



Flex PCB: 1-2Layer

Final Copper Thickness: 1OZ

Surface Finished: ENIG

Unit Size(mm): 322.0*27.58

Panel Size(mm): 342.0*148.3

Min W/S(mil): 10.5/7.5

Min Hole Size: 0.2mm
