| Place of Origin: | China |
|---|---|
| Brand Name: | KSE |
| Certification: | UL, ISO |
| Minimum Order Quantity: | 5 |
| Price: | USD10 |
| Packaging Details: | standard |
| Delivery Time: | 15-35 days |
| Payment Terms: | T/T, Paypal, Western Union |
| Supply Ability: | 1000000pcs/month |

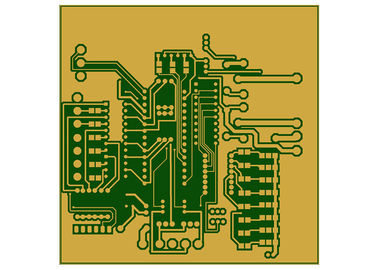

| Layer: | 2-layer | Color: | Green |
|---|---|---|---|
| Size: | 100*100 | Thickness: | 0.6mm |
| High Light: | multilayer printed circuit board,multi layer circuit board |
||
Our factory also provide PCB and PCBA service.
We can offer 24 hours fast sample service for single-sided and double-sided PCBs, 72 hours service for 4 to 10 layers PCB. The factory got ISO9001:2008 from DEKRA. In 2011, got UL and CQC. In 2013, passed ISO/TS16949 from DEKRA also.
Please send us the gerber in RS274X format for quotation.
Details
Thickness: 0.4mm, 0.6mm, 0.8mm, 1.0mm,1.2mm,1.6mm, 2.0mm,2.4mm,3.0mm,
3.2mm optional
Copper thickness: 1OZ, 2OZ, 3OZ optional
Surface finish: HASL, Lead free HASL, ENIG, OSP, gold finger optional
Contour: CNC routing, Punching outline optional
Solder mask: green, blue, yellow, red, and black optional
Technical requirement: min trace: 4mil (0.1mm), min hole: 0.2mm (8mil),
Quality stable, price competitive
Capacity
| Item | Technical Parameters | Remarks | ||
| Min. Line Width(mil) | 3/4 | Partial 3mil lines is allowed | ||
| Min. Space(mil) | 3/4 | Partial 3mil lines is allowed | ||
| Min. Annular Ring Width(mil) | VIAS:3mil | Remained ring width means the distance between the hole edge to the ring outskirt | ||
| Component Holes: 6mils | ||||
|
Min. Hole Size
|
Board Thickness<2.0mm | 0.1mm | Refers to the finished hole | |
| Board Thickness>=2.0mm | Aspect Ratio<=12 | Refers to the finished hole | ||
| Max. Board Thickness | Single and Double Sided | 5.0mm | ||
| Multilayer | 5.0mm | |||
|
Min. Board Thickness
|
Single and Double Sided | 0.2mm | ||
| Multilayer | 4 layers:0.4mm, 6 layers: 0.7mm, 8 layers:1.1mm, 10 layers:1.6mm | |||
| Max. Board Size | Single and Double Sided | 650 x 1100mm | ||
| Multilayer | 650 x 1100mm | |||
| Distance between Line to Board edge | Outline:0.25mm | |||
| V-CUT: 0.4mm | ||||
| Max. Layers | 18 layers | |||
| Solder mask | Mask Window(mil) | 2/4 | ||
| Mask Bridge(mil) | 6 | |||
| Color | Green Yellow Red Blue White Black | |||
| Legend | Min. Line Width(mil) | 5/8 | ||
| Color | White, Black, Yellow, ect. | |||
| Surface Plating | HAL(with Pb free), Plated Ni/Au, Ag, Imm Ni/Au, Imm Sn, Ag, OSP etc. | |||
| Finished Board Thickness Tolerance: |
0.2mm<T<0.5mm: ± 0.05mm; T<0.8mm: ±10% T≥0.8mm, ±8% |
|||
