4-20mA Wireless I O Module 433MHz Level Sensor Wireless Signal Transmission 2km 4AI 4AO

Basic Information
Place of Origin: China
Brand Name: Lensen
Model Number: LS-RAI04+LS-RAO04
Minimum Order Quantity: 2pcs
Price: Negotiation
Packaging Details: standard carton
Delivery Time: 2-6 days
Payment Terms: T/T, Western Union
Supply Ability: 6000pcs/month
Frequency: 433MHz Power Output: 1W
Distance: 2km LOS Program: No Need
Input: 4 Channels 4-20mA Output: 4 Channels 4-20mA
High Light:

wireless signal transfer

,

remote i o module

4-20mA Wireless I O Module 433MHz Level Sensor Wireless Signal Transmission 2km 4AI 4AO


Parameter:

LS-RAI04 wireless analog acquisition module

LS-RAI04 Modbus RTU is a 1W I/O module, 4 analog inputs, 1 RS485 (wireless RS485 customizes). Wireless control 2km-3km. Use for sensor data wireless collection.


Frequency 433MHz or 450MHz or 470MHz
Power output 1W
Products 4AI
Input type 4-20mA or 0-5V or 0-10V
Output type 4-20mA or 0-5V or 0-10V
Resolution ratio 24 bit
Accuracy ±0.02%
Power supply 9-36V DC usually use 24V DC
Interface RS-485
Channel No. 15ch default, can program via DIP switch

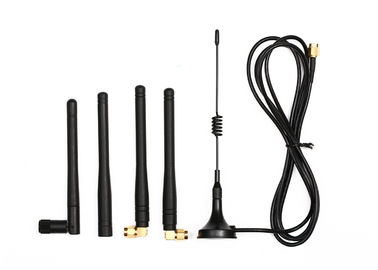

Antenna Sucker antenna with 1.5m cable
Working temperature -35 °C~+75 °C industrial
Working humidity 10%-90% relative humidity, no condensation
Dimension 115×90×40(mm)
Fix way Standard 3.5 inch industrial DIN guild rail



LS-RAO04 wireless analog acquisition module

LS-RAO04 Modbus RTU is a 1W I/O module, 2 analog outputs, 1 RS485 (wireless RS485 customizes). Wireless control 2km-3km. Use for sensor and PLC/HMI wireless communication.


Frequency 433MHz or 450MHz or 470MHz
Power output 1W
Products 4AO
Input type 4-20mA or 0-5V or 0-10V
Output type 4-20mA or 0-5V or 0-10V
Resolution ratio 24 bit
Accuracy ±0.02%
Power supply 9-36V DC usually use 24V DC
Interface RS-485
Channel No. 15ch default, can program via DIP switch
Antenna Sucker antenna with 1.5m cable
Working temperature -35 °C~+75 °C industrial
Working humidity 10%-90% relative humidity, no condensation
Dimension 115×90×40(mm)
Fix way Standard 3.5 inch industrial DIN guild rail


Advantage
- No wires to bury or maintain, no need to drill holes on wall
- Reliable communication in all direction,any terrain, regardless of hills, walls, trees
- Cost saving in installation and maintenance
- Radio based, no need internet and monthly fee, full ownership of the system
- 4G based, high speed, no distance limit

Lensen Wireless RTU features
- Portable device, DIN-rail mounting for easy installation
- Isolated inputs
- LEDs for power supply, communication, input, output status
- Flexible networking, point to point or point to multipoints
- DIP to change different modes
- Different types of I/O, DI, DO, AI, AO are available
- I/O expandable
- Short delay time
- Support I/O reduction, field input, remote output
- Easy handing on RS485 network, support Modbus RTU protocol
- Support on-line upgrade. Can configure by customer in setting mode

Lensen provides:
RF module, RF data module, 433MHz RF module, 868MHz RF module, 915MHz RF module, wireless module, wireless data module, wireless data transmitter, wireless transmitter, wireless receiver, wireless transceiver, wireless DTU, radio module, radio modem, data radio modem, audio modem, wireless voice transmission, wireless APRS, VHF data module, UHF voice transmitter, 150MHz data radio, 230MHz wireless data module, marine radio, ham radio, wireless I/O module, wireless ON-OFF module, wireless RTU, wireless DI DO module, wireless digital I/O module, wireless analog I/O module, 4-20mA wireless transmitter, 0-5V wireless transmitter, wireless PLC, PLC wireless communication, wireless Modbus RTU, Modbus RS485 wireless communication, wireless analog I/O module, wireless sensors, wireless data transfer, wireless pump control, wireless level monitoring, wireless valve control, wireless irrigation control, wireless solenoid control, wireless irrigation, wireless IOT solution, industry automation, wireless control, wireless SCADA, SCADA link, industrial wireless io, RTU with wireless radio

Application area
Wireless pump control
Automate your tank level without running wire between the well pump and the tank. Wireless pump controls save you time and money.
Wireless Tank Level Monitoring
simple wireless monitoring of your tank level from a remote location and receive critical status updates.
Wireless Valve Activation
Open or close electronic wireless valves, solenoid valves.
Smart Agriculture
Pivot irrigation, soil pressure and temperature monitoring
Emergency Notification
Receive critical status updates by email, phone, cell phone, or PDA if equipment fails
Conveyor Control
Control a conveyor motor remotely
Remote Control Relay
Use dry contact inputs to control a remote relay.
Problem Notification
Save time in large facilities by activating an overhead notification light when a problem occurs, letting the supervisor know exactly where to go.
Dust Suppression
Use wireless I/O module to operate your dust
Data Logging
Wirelessly acquire and log various data from a remote location using our analog I/O module
Stacker Control
Start and stop your stacker/reclaimir. Connect PLC in control center with stacker and reclaimer.
Proximity Detection
Mount a transmitter with adjustable range on heavy equipment, mount a receiver in a “blind spot,” and then set up the receiver to sound an alarm or turn on a light whenever the equipment is operating in the area.
Chemical Level Monitoring
Monitor water chlorination or other chemicals remotely.
Traffic Signals
Avoid having to lay new wire by using wireless transmitters and receivers to control traffic signs such as “Railroad Crossing Ahead” when a train is present.
Grain Elevators
Our wireless transmitters and receivers can be used to monitor grain elevator conditions or control different functions. To collect RS485 data. To monitor temperature and humidity in Grain.
Freight Loading
Digital I/O module for crane control and analog I/O module to send the load information wirelessly to another location.

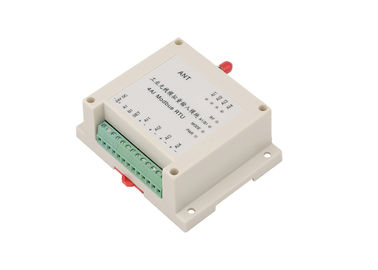

4-20mA Wireless I O Module 433MHz Level Sensor Wireless Signal Transmission 2km 4AI 4AO 0

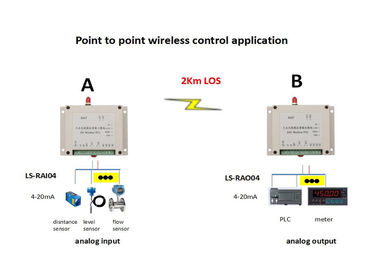

4-20mA Wireless I O Module 433MHz Level Sensor Wireless Signal Transmission 2km 4AI 4AO 1
