Detailed Product Description
Chip: CC1020 Power Output: 1W
Distance: 2-3km LOS Frequency: 433MHz/450MHz/470MHz
Port: Serial RS232/RS485/TTL Application: AMR
High Light:

wireless data module

,

wireless data transfer

433MHz RF Data Module , Wireless Rf Transmitter 2KM Wireless Transceiver Module For AMR





Introduction

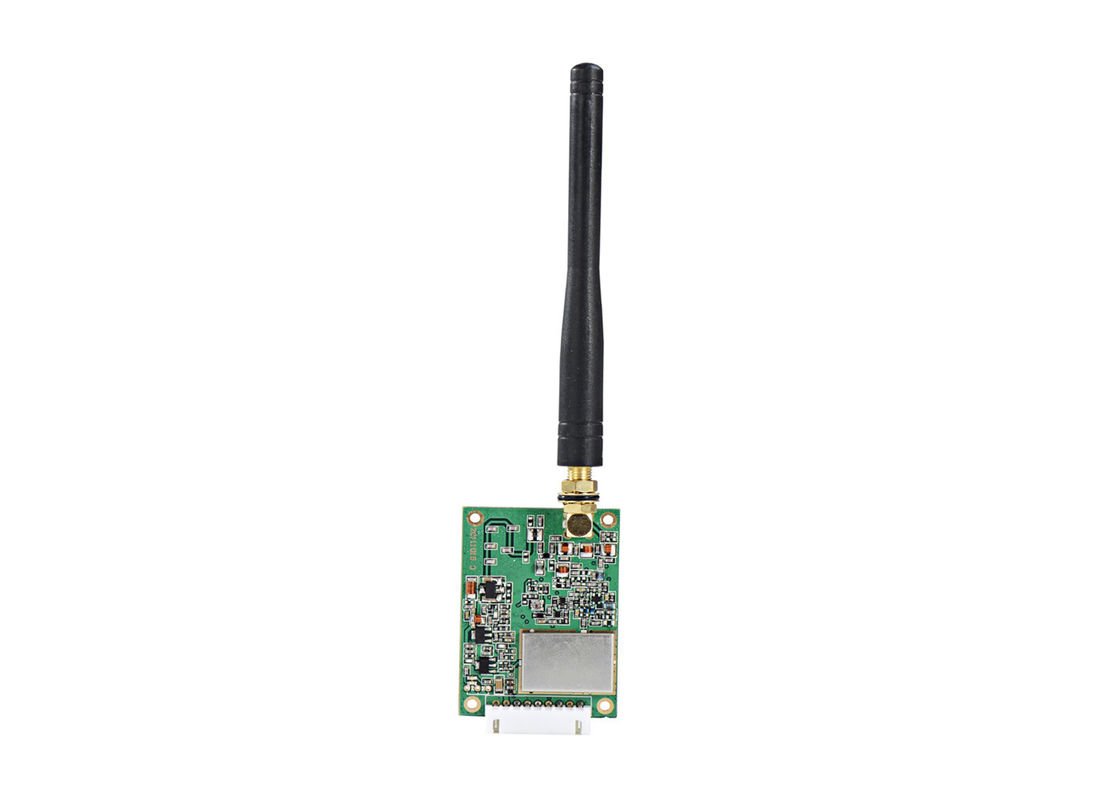

LS-U1000 is a UHF band 1000mW data module. It transmits around 2-3km LOS. This module adopts transparent transmission. Users don’t need any program knowledge. Designed with good performance IC TI CC1020 and high speed MCU, LS-U1000 is an excellent RF transceiver. It has the advantage of small size, low power consumption, long transmission distance, and also, strong anti-interference ability.







Parameter:



Power output: 5V DC default or 12V customized

RF power: 1W default or 500mW

Air baud rate: 1,200/2,400/4,800/9,600/19,200bps choose one

Interface baud rate: 1,200/2,400/4,800/9,600/19,200bps programmable

Frequency band: 433, 450, 470 or others

Interface: Standard RS-232/RS-485/TTL

Communication mode: Half-duplex

Channel: 8(default), 16/32(customized)

Receive current: <45mA (TTL connect)

Receive sensitivity: -123dBm @ 1,200bps); -118dBm @ 9,600bps)

Transmitting current: <500mA

RF line-of-sight range: 2km (BER=10-5@9600bps); 3km (BER=10-5 @ 1,200bps)

Size: 53×38×10mm (without antenna port)



PERFORMANCE
Power Output: 1W
RF Line-of-sight Range: 3km@1200bps; 2km@9600bps
RF Effective Rate: 1200/2400/4800/9600/19200bps
Space Channel: 1MHz(Default), (12.5/25KHz customization )
Bandwidth: <25KHz
Receiver Sensitivity: -123dBm@1200bps, -118dbm(9600bps)
Data format: 8N1, 8E1, 8O1 (customize)
COMPATIBILITY
LS-UN10, LS-UN100, LS-U1000, LS-UN5000 series
POWER
Supply Voltage: 5V DC
Transmit Current: <600mA
Receive Current: <50mA
Sleep current: <20uA
GENERAL
Communication Mode: Half-duplex
Frequency Band: 433MHz or 400MHz, or 450MHz, 470MHz
Frequency modulation FSK/GFSK
Channel: 8(default),16/32/64(optional)
Interface: TTL, RS232, RS485 (choose one)
PHYSICAL PROPERTIES
Size: 53mm×38mm×10mm
(excluding antenna base and data pin)
Weight: 35g
Antenna Base: 50Ω, SMA
Operating Temperature: Industrial:-40℃~+85℃(TCXO)
Frequency Stability: ±2.5ppm Industrial






Application:

Queuing machine wireless control

Automatic meter reading

LED display/ LED sign

PTZ wireless Monitoring

Factory automation

Handhold device

Irrigation system

Data telemetry

Robotics control

Home automation





Pin Definition (9 pin)

Pin No.

Signal

Name

Function Level Connection with terminal Remarks
1 GND Grounding of power supply   Ground
2 VCC Power supply DC 5V
3 RxD/TTL Data receiving TTL TxD
4 TxD/TTL Data transmitting TTL RxD
5 SGND Signal
6 A (TXD) A of RS-485 (TxD of RS-232)   A(RxD)
7 B (RXD) B of RS-485 (RxD of RS-232)   B(TxD)
8 SLEEP Sleep control TTL Sleep signal Low level valid
9 TEST Factory testing




Install Dimension

433MHz RF Data Module , Wireless Rf Transmitter 2KM Wireless Transceiver Module For AMR 0



How to connect with PC

433MHz RF Data Module , Wireless Rf Transmitter 2KM Wireless Transceiver Module For AMR 1



Typical application:



data transfer in wireless RTU



433MHz RF Data Module , Wireless Rf Transmitter 2KM Wireless Transceiver Module For AMR 2
