| Place of Origin: | China |
|---|---|
| Brand Name: | Lensen |
| Model Number: | LS-EVC02 |
| Minimum Order Quantity: | 2pcs |
| Price: | Negotiation |
| Packaging Details: | standard carton |
| Delivery Time: | 2-7 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 6000pcs/month |
| Power Output: | 1W | Distance: | 2km |
|---|---|---|---|
| Wireless Technology: | Lora | Station: | 2 |
| Valve Type: | Electric Linear Actuator | Power Supply: | Solar+battery |
| High Light: | Wireless Electric Linear Actuator,2ch Wireless Electric Linear Actuator,Wireless Electric Linear Actuator 2 Station |
||

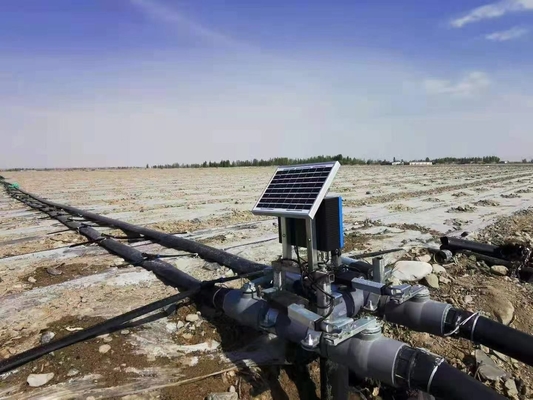

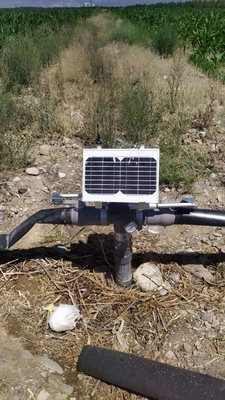

2ch Wireless Electric Linear Actuator For Automatic Irrigation Control
Characteristics:
1. maintenance easy, no communication fee
2. solar powered, with embedded lion battery + solar for power supply.
3. field unit, need to match with master unit to use together.
4. specially design for some area the water pressure is not enough.
5. each unit can connect and control 2 stations
| Parameter | |
| Power output: | 1W |
| Power supply: | 12.6V DC |
| Control distance: | 2km LOS |
| Baud rate: | 2400bps |
| Receiving sensibility: | -123dBm@1200bps, -118dbm(9600bps) |
| Networking | |
| Networking: | Point to point and point to multipoint |
| Protocol: | Modbus RTU protocol |
| Port Description | |
| Input | 5AI (4-20mA) |
| Output: | 4 pulse output |
| Communication port | TTL |
| Current | |
| Transmit current: | <400mA |
| Receiving current: | <40mA |
| General | |
| Frequency: | 433MHz |
| Channel No: | 16 channels, can change via DIP switch |
| Physical Properties | |
| Dimension: | 115×90×40(mm) |
| Antenna Connector: | SMA,vehicle antenna with 1.5m cable |
| Temperature: | -35℃~+75℃( industrial) |
| Mounting method: | Standard 3.5 inch industrial guild rail |
