Lora Based Wireless Irrigation Controller , 2-Station Valves ON OFF Control

Lora Based Wireless Irrigation Controller , 2-Station Valves ON OFF Control

General introduction:

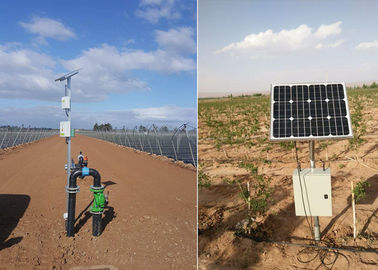

Automated irrigation becomes a trend with the development of smart agriculture. In order to send appropriate amount water in proper time to your farmland, we design this wireless irrigation system. It realized to Start/OFF your field solenoid valves wirelessly. You can control different field valves at control room. No need to go field and control each valves manually one by one. Wireless irrigation control system will really help you save a lot of time.

Product features:

1. Controller is solar powered.
2. Only need one key push to setup Dry/Wet control threshold, very easy to use.
3. Has manual key to manually open/close valves for the convenience of field operation and maintain.
4. With pressure meter installed to check valve open/close abnormal, alarm to main controller if there is failure.
5. This controller also functions as relay. The built in bidirectional wireless distance can reach 5km.
6. The moisture sensor can bury deep in the soil.
7. If there is not enough solar power, the controller will turn off valve first, then turn self-off, recharging, and wake up automatically after recharged.
8. Field controllers in the range will automatically setup mesh network route to communicate with the main controller.
9. This controller can work for almost one month under rain/cloudy days.

Specifications:
Solar panels: 12.6V DC /10W
Back-up battery: 10*1.2V/ 2.3AH AA Size
Quiescent current: 1mA
Frequency: 902-928 MHZ
Communication distance at open space: 1600ft
Working environment: Temperature [-30~60℃]; Humidity [<90%]
<!90%]
Lasting time of fully charged battery: 7 days without sun
Battery charging time: 10 hours under standard illumination

Moisture sensor:
1. Output: pulse signal
2. Moisture Range: 0-99%
3. Precision: 1%
4. Sample soil moisture frequency:
A. Push scan key immediately take sample, normally take soil sample every 5 minutes under irrigation, otherwise 30 minutes.
B. When exit from setup, controller will take sample once.
C. When at adjusting Dry/Wet control menu, take sample every 0.5 second.

Solenoid valve:
1. Output: pulse signal
2. DC9-12V

Pressure Meter:
1. Pressure range:0.06Mpa-0.6Mpa; 0.1Mpa-1.3Mpa
2. Thread:1/2, 1/4, 1/8 NPT can be choosed.

Remark:

1. Suggested maximum pressure meter extention cable is 50 meters.

2. Suggested maximum magnetic valve extention cable is 20 meters.
3. Suggested maximum moisture sensor extention cable is 50 meters.
