Product Details:
Payment & Shipping Terms:
|
Input: | 8DI | Input Type: | PNP/NPN |
---|---|---|---|
Output: | 8DO | Voltage Range: | 5-30VDC |
High Light: | 8DI Programmable Automation Controllers,8DO Programmable Automation Controllers,8DI Process Logic Controller |

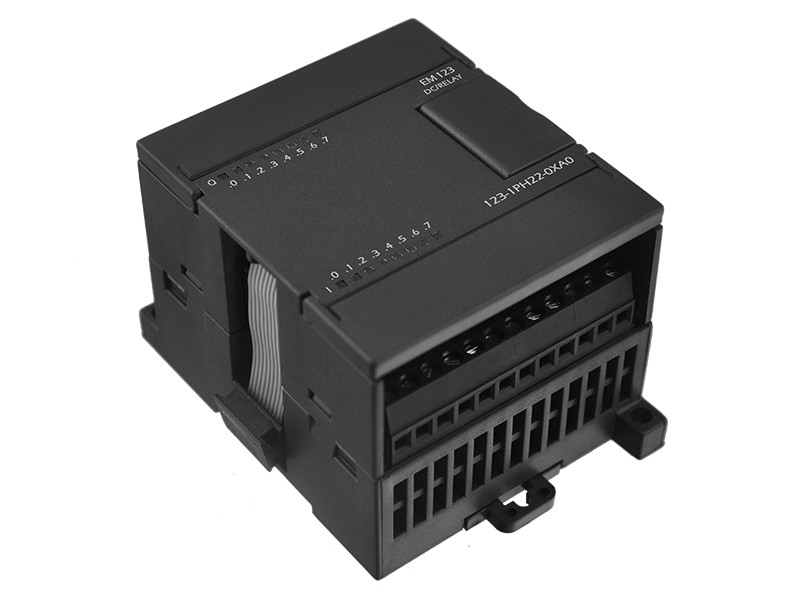

8DI 8DO PLC Programmable Automation Controllers For Industrial Automation
China PLC 8DI/8DO Low cost PLC
● 8 digital input,24V DC/8 digital output, relay,2A,
● Relay output, electromagnetic isolation,
● Strong anti-interference performance, stable
Model | EM123 8 inputs/outputs Relay |
Product Description |
8DI,24VDC/8DO, 24 VDC/250VAC, Relay isolation with high immunity. |
From bus current consumption | 80mA |
Power loss | 3W |
Digital Input Specification | |
Number of digital inputs | 8 |
Input voltage | 24 VDC,4mA |
Logic 0 signal | 0~5 VDC |
Logic 1 signal | 15~30 VDC |
Maximum Input Delay Time | 4.5ms |
Signal input type· | PNP/NPN |
Optical isolation(Galvanic) | 500 V AC for 1 minute |
Cable Length (Shielded) | 500m |
Cable Length (unshielded) | 300m |
Digital Output Specification | |
Number of digital outputs | 8 |
Output type | Relay |
Isolation | Relay |
Output voltage | 24 VDC |
Output voltage range | 5~30 VDC/20~250V AC |
Output Current | 2.0A |
Lamp load | 30W DC/20~250W AC |
Lifetime contact mechanical | 10,000,000 |
Lifetime contact mechanical (rated load voltage) |
100,000 |
Cable Length (Shielded) | 500m |
Cable Length (unshielded) | 150m |
Dimensions(W x H x D)(mm) | 71.2×80×62 |
Order Number | UN 123-1PH22-0XA0 |
Wiring Diagram
