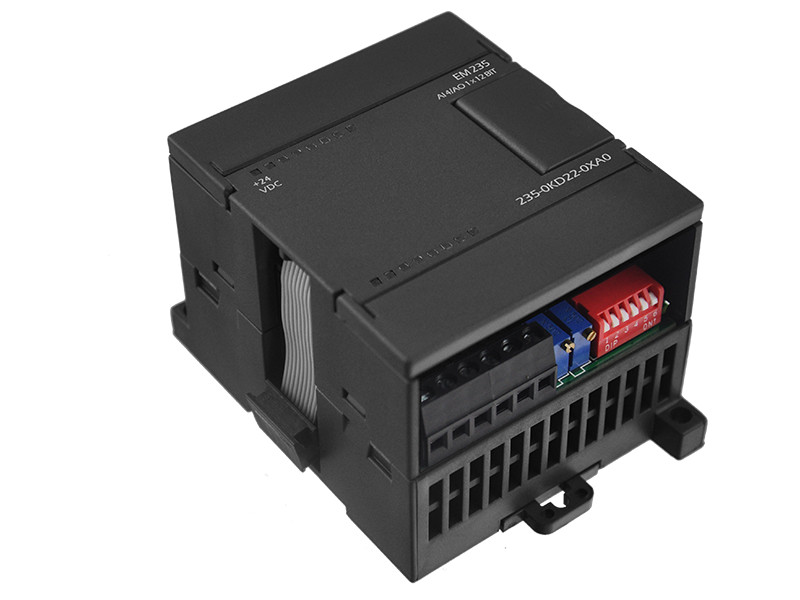

EM235 4AI 1AO PLC Programmable Logic Controller Analog Acquisition

EM235 4AI 1AO PLC Programmable Logic Controller Analog Acquisition
EM235 4AI 1AO PLC Programmable Logic Controller Analog Acquisition

Large Image :  EM235 4AI 1AO PLC Programmable Logic Controller Analog Acquisition

Product Details:
Place of Origin: China
Brand Name: EM235
Certification: CE
Model Number: EM235
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Packaging Details: standard carton
Delivery Time: 2-8 days
Payment Terms: T/T
Supply Ability: 6000pcs/month
Detailed Product Description
Input: 4AI Input Type: PNP/NPN
Output: 1AO Voltage Range: 5-30VDC
High Light:

1AO PLC Programmable Logic Controller

,

EM235 PLC Programmable Logic Controller

,

EM235 Embedded PLC Controllers

EM235 4AI 1AO PLC Programmable Logic Controller Analog Acquisition



4AI 1AO Analog Acquisition PLC Low Cost High Performance China PLC



4AI,1AO;

12 bits resolution voltage output;

11 bits resolution current output

technical parameters
Model EM235 4 inputs/1 outputs ×12bits
Product Description

4AI,1AO; 12 bits resolution voltage output;

11 bits resolution current output

Input Feature
From bus current consumption 30mA
From L+ current consumption 60mA
Power loss 2W
Number of analog Input 4
Signal input type Differential
Maximum input voltage 30V
Maximum input current 32mA
Voltange input range: Unipolar 0~50mV, 0~100mV,0~500mV,0~1V,0~5V,0~10V
Voltange input range: Bipolar

±1V, ±2.5V, ±5V, ±10V

±25mV, ±50mV, ±100mV, ±250mV, ±500mV,

current input range 0~20mA,
Resolution 12bits
Bipolar,full-scale range 0~32,000
Unipolar, full-scale range -32,000~+32,000
Analog to digital conversion time <250µs
Output Feature
Number of analog Input 1
Input voltage range -10~+10V
Input current range 0~20mA
Load inpedance
·for voltage outputs Min:5KΩ
·for current outputs Max:0.5KΩ
Resolution

12 bits voltage output;

11 bits current output

Data word format
·Displayable:voltage output -32,000~+32,000
·Displayable:current output 0~32,000
Basic error ±0.5% of full range
Dimensions(W x H x D)(mm) 71.2×80×62
Order Number UN 235-0KD22-OXAO

EM235 4AI 1AO PLC Programmable Logic Controller Analog Acquisition 0



Wiring Diagram
EM235 4AI 1AO PLC Programmable Logic Controller Analog Acquisition 1
