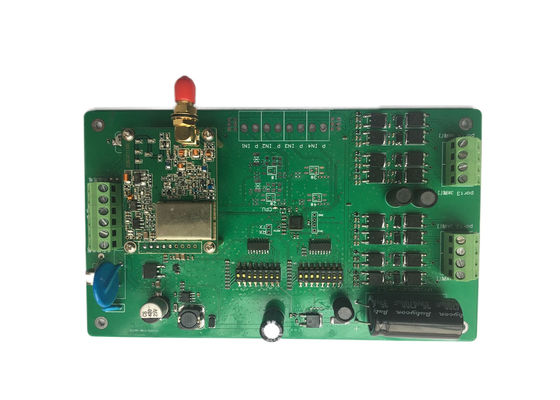

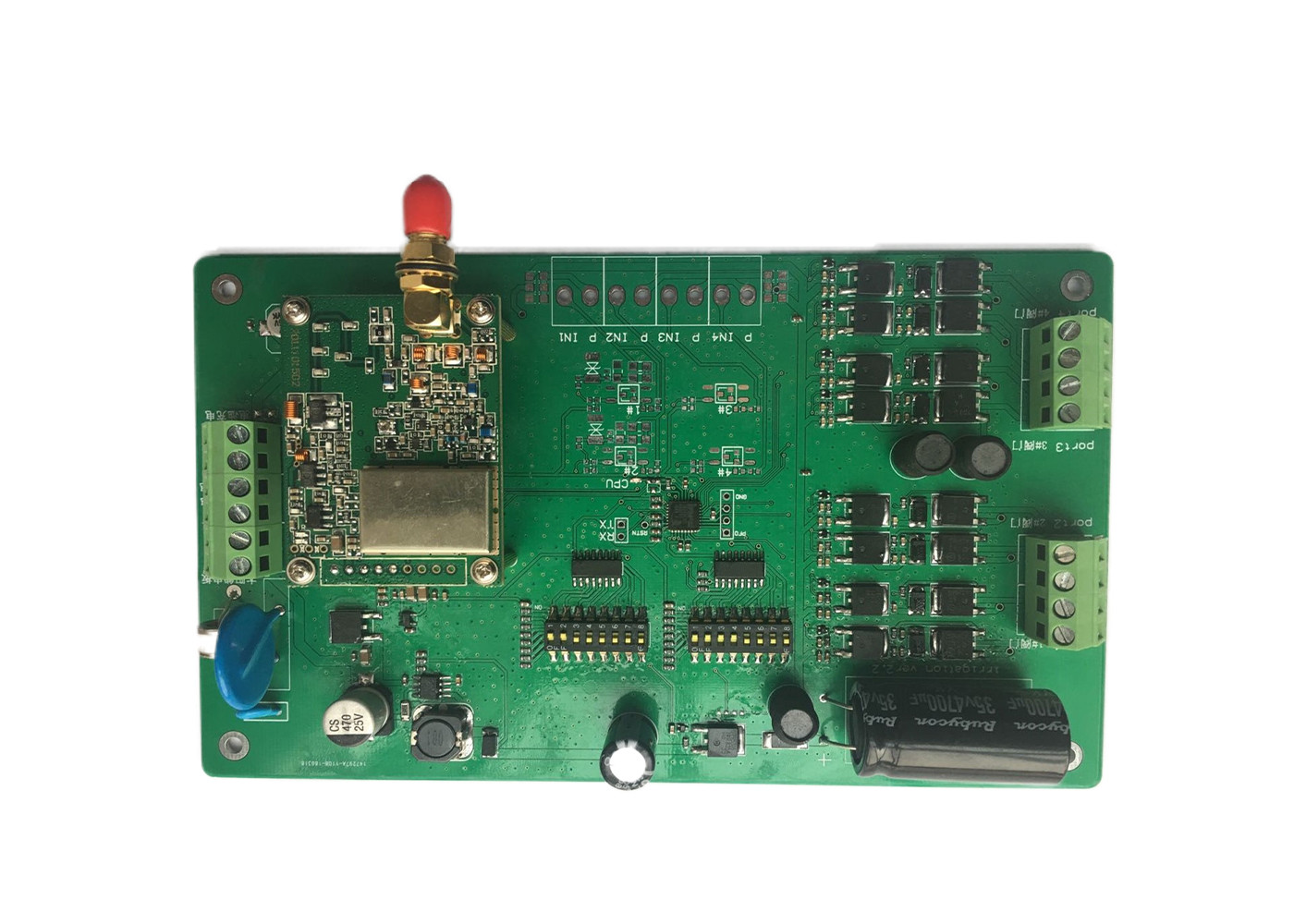

5km Wireless Irrigation Controller

5km Wireless Irrigation Controller
5km Wireless Irrigation Controller
Basic Information
Place of Origin: China
Brand Name: Lensen
Model Number: LS-RPO04
Minimum Order Quantity: 2pcs
Price: Negotiation
Packaging Details: standard carton
Delivery Time: 2-7 days
Payment Terms: T/T, Western Union
Supply Ability: 6000pcs/month
Contact Now
Power Output: 1W Distance: 5km
Wireless Technology: Lora Station: 4
Valve Type: 9-12V DC Type Valve(Pulse) Solar Supply OK: Support
Highlight:

5km Wireless Irrigation Controller

,

1W Wireless Irrigation Controller

,

5km Wifi Irrigation Controller

5km Wireless Irrigation Controller



Lora Wireless Irrigation Controller 4 Station Field Controller 5km Wireless On Off Control



Valve controller Parameter

1. It is designed to control 9-36V DC type latching valve (pulse output type solenoid valve)

2. 12V DC switching power supply or solar panel + lithium battery power supply. Battery type: 3S Lithium Ion battery, full of power 12.6V. If you will use LiFePO4 battery, please let us know in advance, we need to change charging circuit to match your battery.

3. 4 isolated pulse outputs, can control 4 solenoid valves (9-36V DC) separately

4. 433MHz, 1W power output

5. Power consumption: 40mA




Parameter
Power output: 1W
Power supply: 12V DC
Control distance: 5km LOS
Baud rate: 2400bps
Receiving sensibility: -123dBm@1200bps, -118dbm(9600bps)
Networking
Networking: Point to point and point to multipoint
Protocol: Modbus RTU protocol
Port Description
Input 8 active inputs (passive customize), isolated
Output:



2 relay output
Communication port TTL
Current
Transmit current: <600mA
Receiving current: <40mA
General
Frequency: 433MHz
Channel No: 16 channels, can change via DIP switch
Physical Properties
Dimension:
Antenna Connector: SMA,vehicle antenna with 1.5m cable
Temperature: -35℃~+75℃( industrial)
Mounting method: Standard 3.5 inch Din rail





How to use



1. to use together with our 8DI wireless controller



5km Wireless Irrigation Controller 0







How to wire this valve controller



5km Wireless Irrigation Controller 1



Application example



5km Wireless Irrigation Controller 2
