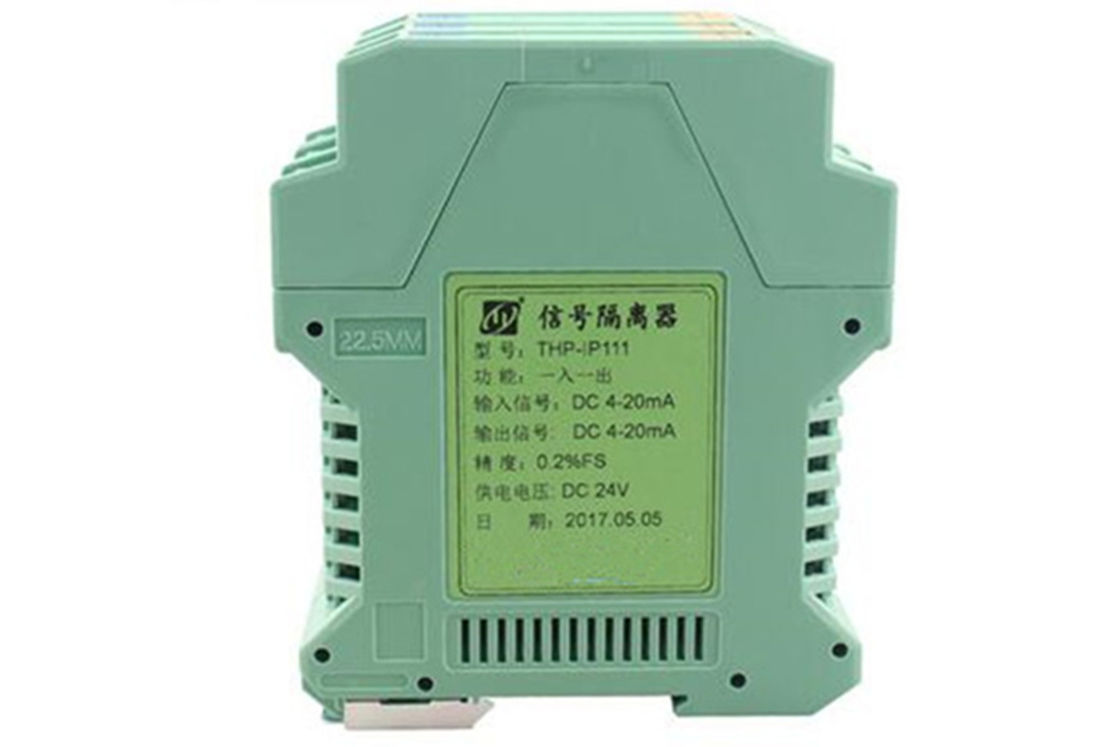

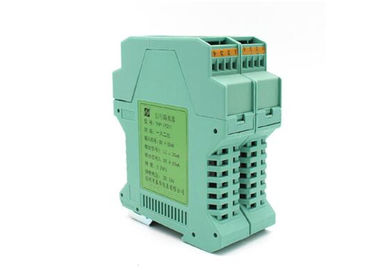

| Place of Origin: | China |
|---|---|
| Brand Name: | LS |
| Certification: | CE |
| Model Number: | LS-THP-IP |
| Minimum Order Quantity: | 1pc |
| Price: | negociate |
| Packaging Details: | standard |
| Delivery Time: | 3-6 days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 10000pcs |
| Input: | 4-20mA, 0-20mA, 0-75mV, 0-5V, 0-10V | Output: | 4-20mA; 0-20mA; 0-5V; 0-10V |
|---|---|---|---|
| Power Supply: | 24V DC | ||
| High Light: | 10ms Current Signal Converter,30mA Current Signal Converter,24V DC Current Signal Isolator |
||
Input
Input signal: 4-20mA; 0-20mA; 0-75mV, 0-5V; 0-10V
Distribution voltage: 24V, (maximum drive current 30mA)
Input impedance: current input: ≤50Ω; voltage input: ≥300KΩ
Output
Output signal: 4- 20mA; 0-20mA; 0-5V; 0-10V
Output load resistance: RL≤500Ω (when the output is a current signal); RL≥10KΩ (when the output is a voltage signal)
Basic parameters
Power: DC24V, soil 10% or AC85-265V
Consumption current: ≤50mA (one input and one output, 24V power supply, power distribution input, 20mA output); ≤70mA (one input, two output, 24V power supply, power distribution input, 20mA output); ≤100mA (two input two output (24V power supply, power distribution input, 20mA output)
Basic accuracy: 0.1% F.S.
Temperature drift: 0.005% F.S./degree (-20 degrees ~ +55 degrees)
Response time: ≤10mS (0-90%) (TYP)
Insulation strength: 1500V AC / 1min (between input, output and power)
Insulation resistance: ≥100MΩ (between input, output and power)
Operating temperature range: -20 ~ + 55 degrees
Electromagnetic compatibility: in accordance with GB / T 18268 (IEC61326-1)
Applicable field equipment: two-wire system, three-wire system transmitter; current source, voltage source.
| Parameter | ||||
| THP-IP | X | X | X | marks |
| Configuration | 3 | 1 input 3 output | ||
| 4 | 1 input 4 output | |||
| 7 | 2 input 4 output | |||
| Input signal | 1 | 4-20mA | ||
| 2 | 0-20mA | |||
| 4 | 0-75mV | |||
| 5 | 0-5V | |||
| 7 | 0-10V | |||
| Output signal | 1 | 4-20mA | ||
| 2 | 0-20mA | |||
| 4 | 0-5V | |||
| 6 | 0-10V | |||
| Please indicate your required input type and output type when place order | ||||
Dimension
