| Place of Origin: | China |
|---|---|
| Brand Name: | LS |
| Certification: | CE |
| Model Number: | LS-THT-IP |
| Minimum Order Quantity: | 2pc |
| Price: | negociate |
| Packaging Details: | standard |
| Delivery Time: | 3-6 days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 10000pcs |
| Input: | 0-75MV; 0-5V; 0-10V | Output: | 4-20mA; 0-20mA; 0-5V; 0-10V |
|---|---|---|---|
| Mounting Way: | Din-rail Mounting | Power Supply: | 24V DC |
| High Light: | 20mA Digital Signal Isolator,10mS Digital Signal Isolator,1500V AC Analog Signal Isolator |
||

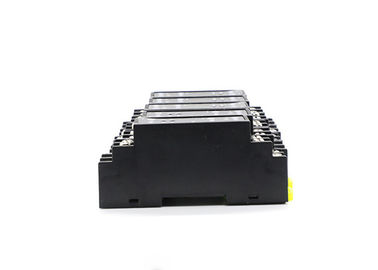

20mA Digital Signal Isolator
Signal Isolator Current/Voltage Signal 0-5V or 4-20mA Isolator
Input
Input signal: 4-20mA; 0-20mA
Distribution voltage: 24V, (maximum drive current 30mA)
Input impedance: ≤50Ω
Output
Output signal: 4-20mA; 0-20mA; 0-5V; 0-10V
Output load resistance: RL≤500Ω (when output is current signal); RL≥10KΩ (when output is voltage signal)
Basic parameters
Power supply: DC24V, ± 10%
Current consumption: ≤50mA (one input and one output, 24V power supply, power distribution input, 20mA output); ≤70mA (one input and two output, 24V power supply, power distribution input, 20mA output)
Temperature drift: 0.005% F.S. / degree (-20 degrees ~ +55 degrees)
Response time: ≤10mS (0-90%) (TYP)
Insulation strength: 1500V AC / 1min (between input, output, power supply)
Insulation resistance: ≥100MΩ (between input, output, power supply)
Operating temperature range: -20 ~ +55 degrees
Electromagnetic compatibility: Comply with GB / T 18268 (IEC61326-1)
Applicable field equipment: two-wire system, three-wire system transmitter; current source
| Parameter | ||||
| THT-IP | X | X | X | marks |
| Configuration | 1 | 1 input 1 output | ||
| 2 | 1 input 2 output | |||
| Input signal | 1 | 4-20mA | ||
| 2 | 0-20mA | |||
| 3 | 0-10mA | |||
| Output signal | 1 | 4-20mA | ||
| 2 | 0-20mA | |||
| 4 | 0-5V | |||
| 6 | 0-10V | |||
| Please indicate your required input type and output type when place order | ||||
