Product Details:
Payment & Shipping Terms:
|
| Input: | 4-20mA; 0-20mA | Output: | 4-20mA; 0-20mA; 0-5V; 0-10V |
|---|---|---|---|

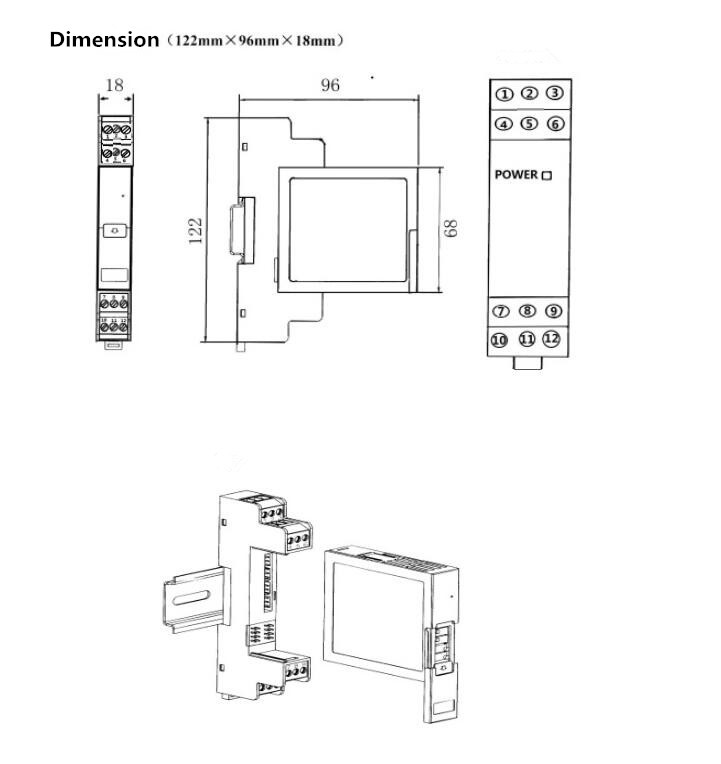

| Mounting Way: | Din-rail Mounting | Power Supply: | 24V DC |
| High Light: | din rail isolator,signal isolation transmitter |
||
Input
Input signal: 4-20mA; 0-20mA
Distribution voltage: 24V, (maximum drive current 30mA)
Input impedance: ≤50Ω
Output
Output signal: 4-20mA; 0-20mA; 0-5V; 0-10V
Output load resistance: RL ≤ 500Ω (when the output is a current signal); RL ≥ 10KΩ (when the output is a voltage signal)
Basic parameters
Power supply: DC24V, ±10%
Current consumption: ≤50mA (one input and one output, 24V power supply, power distribution input, 20mA output); ≤70mA (one input and two output, 24V power supply, power distribution input, 20mA output); ≤100mA (two in two out , 24V power supply, power distribution input, 20mA output)
Basic accuracy: 0.1% F.S.
Temperature drift: 0.005% F.S. / degree (-20 degrees ~ +55 degrees)
Response time: ≤10mS (0-90%) (TYP)
Insulation strength: 1500V AC / 1min (between input, output, and power)
Insulation resistance: ≥100MΩ (between input, output, and power)
Operating temperature range: -20~+55 degrees
Electromagnetic compatibility: in accordance with GB/T 18268 (IEC61326-1)

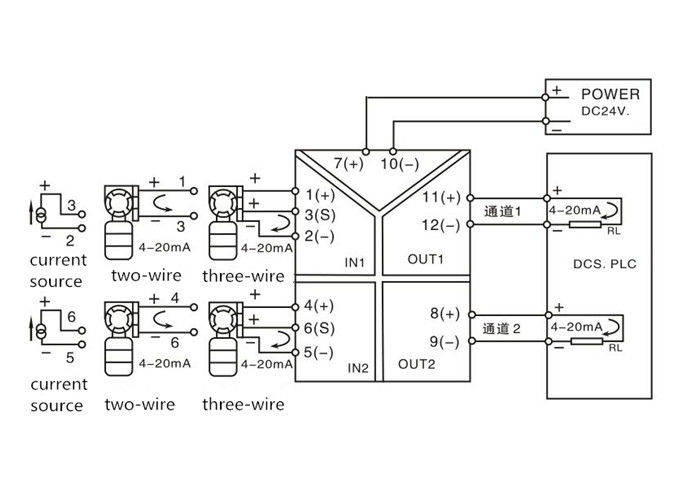

Applicable field devices: two-wire system, three-wire transmitter; current source.
| Parameter | ||||
| THG-IP | X | X | X | marks |
| Configuration | 1 | 1 input 1 output | ||
| 2 | 1 inputs 2 outputs | |||
| 5 | 2 inputs 2 outputs | |||
| Input signal | 1 | 4-20mA | ||
| 2 | 0-20mA | |||
| Output signal | 1 | 4-20mA | ||
| 2 | 0-20mA | |||
| 4 | 0-5V | |||
| 6 | 0-10V | |||
| Please indicate your required input type and output type when place order | ||||
