Product Details:
Payment & Shipping Terms:
|
| Station: | 1-Station | Valve Type: | 9-12V DC Type Valve |
|---|---|---|---|
| Water Proof: | Yes | Wires Type: | 2-wire |
| Distance: | 4km | Support: | Wire/wireless |
| High Light: | wireless irrigation system,smart irrigation controller |
||

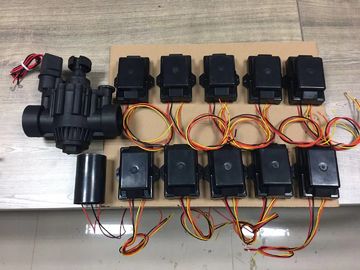

2-wire DC Valve Decoder 1-station landscape irrigation controller
Introduction
LS-DCD100 two-wire DC type valve decoder is easy to install. New devices can be added into this two-wire system easily and freely. Decoder’s ID is preset in factory to avoid coding confusion caused by on-site wrong installation. Decoder’s electrical components are completely resin-sealed. It is water proof and reliable. The whole system is easy to expand, users just need to connect decoders to the line, then you can control its related solenoid valve through the central control system or mobile APP. This two-wire decoder system saves 30-80% cable compared to conventional control system. It is a good replacement for traditional irrigation control system.
New ISP Decoders
Industry leading surge protections up to 20 KV means less grounding in the field than competitive products.
Advanced Diagnostics
The TDC provides true two-way communication with each decoder in the field, thus providing communication verification to decoders in the field, as well as shorted or open solenoid conditions, making troubleshooting a breeze.
Low-Power Operating Costs
The TDC Decoders operate DC Latching Solenoids which utilize no power when valves are in operation.
Water Budget
Water budget by controller, by program and by station (Season Adjust) 0 to 250% in 1% increments.
Simple, Intuitive Programming
Installation and future servicing are quick and simple thanks to the large LCD display and the industry's most intuitive interface.
|
Power |
120 VAC or 220/240 VAC |
|---|---|
|
Dimensions |
14" W x 13" H x 6" D |
|
Number of Stations |
100-200 |
|
Number of Programs |
10 |
|
Number of Start Times |
60 |
|
Run Time |
18 hours |
|
Programming Options |
Days of the Week; Odd/Even; Interval |
|
Valves |
2 |
|
Surge Protection |
Optional |
|
Location |
Outdoor |
|
Enclosures |
Key Lock Cabinet |
|
Pedestal |
Stainless Steel Option |
|
Output Power |
Up to 38 VAC |
