SX1278 433MHz Wireless Lora Module 100mW Data Module Serial 1-5km Wireless Control

Basic Information
Place of Origin: China
Brand Name: Lensen
Model Number: LS-LR100-433
Minimum Order Quantity: 2pcs
Price: Negotiation
Packaging Details: standard carton
Delivery Time: 1-6 days
Payment Terms: T/T, Western Union
Supply Ability: 6000pcs/month
Frequency: 433MHz Power Output: 100mW
Technology: Lora Distance: 1-5km LOS
Interface: TTL Chip: SX1278
High Light:

lora gateway module

,

lora long range

LoRa Longe Range UART SX1278 433mhz 100mW SMA Antenna IoT uhf Wireless Transceiver Transmitter Receiver Module



RF Parameter Value Remark
Working frequency 410~441 MHz Default: 433MHz
Transmitting power 10~20 dBm Default: 20dBm(About 100mW)
Receiving sensitivity -146 dBm Air data rate: 0.3kbps
Air data rate 0.3k~19.2kbps Default: 2.4kbps
Test distance 3000 meter

In open and clear air, with maximum power, 5dBi antenna gain, height of 2m,

air data rate: 2.4kbps



Hardware Parameter Value Remark
Size 21 * 36 mm Without SMA
Antenna type SMA-K
Communication interface UART Baud rate: 1200~115200, default: 9600
Package DIP
Buffer 512 bytes buffer Automatically sub-packaging with 58 bytes per package



Electronic parameter Min. Typ. Max. Unit Condition
Power supply 2.3 3.3 5.5 V
Communication level 3.0 3.3 3.6 V
Transmitting current 102 110 118 mA 20dBm(100mW)
90 93 96 mA 10dBm(50mW)
Receiving current 12 15 18 mA
Sleep current 3 5 8 μA
Operating temperature -40 20 +85
Operating humidity 10 60 90 %
Storage temperature -40 20 +125



Application area

SCADA

AMR (Automatic Meter Reading)

Camera control (PTZ)

Sports scoreboard control

Electronic signs and message boards

GPS fleet tracking

Security systems

Vending machine monitoring

Remote weather systems

Remote parking and gate access systems

Remote weigh scales

HVAC control

Remote pump station control

Homeland defense

Robotics and control

Wireless inventory control applications

Pivot irrigation

Airborne telemetry

Remote instrumentation

Wireless pressure and temperature sensors

E32 LoRa Transceivers (2)

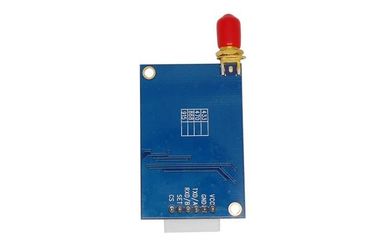

SX1278 433MHz Wireless Lora Module 100mW Data Module Serial 1-5km Wireless Control 1
