433MHz 1W Wireless Lora Module SX1278 Long Range Data Module TTL RF Transceiver Module

Name: 433MHz 1W Wireless Lora Module SX1278 Long Range Data Module TTL RF Transceiver Module
Brand: Lensen
SKU: LS-LR1000-433
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (125 reviews)

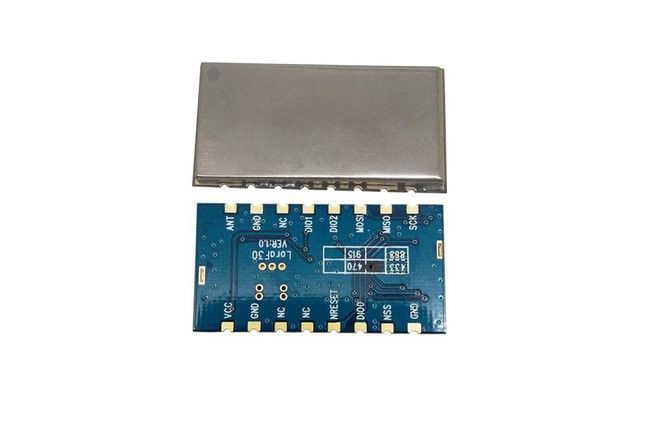

Large Image : 433MHz 1W Wireless Lora Module SX1278 Long Range Data Module TTL RF Transceiver Module

Product Details:

Place of Origin:	China
Brand Name:	Lensen
Model Number:	LS-LR1000-433

Payment & Shipping Terms:

Minimum Order Quantity:	2pcs
Price:	Negotiation
Packaging Details:	standard carton
Delivery Time:	1-6 days
Payment Terms:	T/T, Western Union
Supply Ability:	6000pcs/month

Contact Now

Detailed Product Description

Frequency:	433MHz	Power Output:	1W
Interface:	TTL	Chip:	SX1278
Distance:	5km+	Antenna:	SMA
High Light:	lora gateway module , lora long range

Lora Long Range UART SX1278 433mhz 1W SMA Antenna IoT uhf Wireless Transceiver Transmitter Receiver Module

RF Parameter	Value	Remark
Working frequency	410~441 MHz	Default: 433MHz
Transmitting power	21~30 dBm	Default: 30dBm(About 1W)
Receiving sensitivity	-147 dBm	Air data rate: 0.3kbps
Air data rate	0.3k~19.2kbps	Default: 2.4kbps
Test distance	8000 meter	In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 2.4kbps

Hardware Parameter	Value	Remark
Size	24 * 43 mm	Without SMA
Antenna type	SMA-K
Communication interface	UART	Baud rate: 1200~115200, default: 9600
Package	DIP
Buffer	512 bytes buffer	Automatically sub-packaging with 58 bytes per package

Electronic parameter	Min.	Typ.	Max.	Unit	Condition
Power supply	3.3	5.0	5.2	V
Communication level	2.5	3.3	3.6	V
Transmitting current	570	610	670	mA	30dBm(1W)
Receiving current	19	20	22	mA
Sleep current	4	5	6	μA
Operating temperature	-40	20	+85	℃
Operating humidity	10	60	90	%
Storage temperature	-40	20	+125	℃
