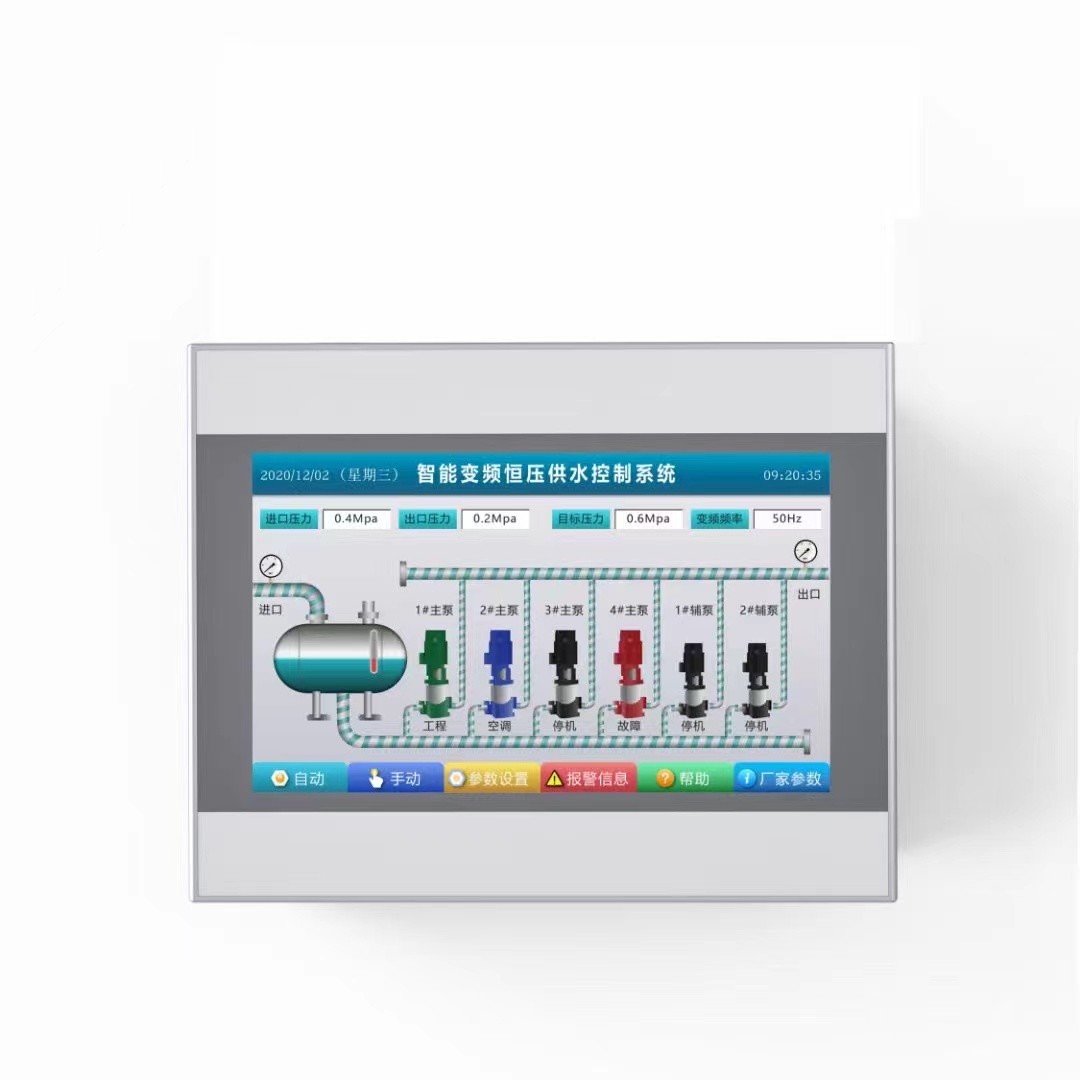

7'' Human Machine Interface Devices 800x480 24bits Touch Creen Panel

7'' Human Machine Interface Devices 800x480 24bits Touch Creen Panel
7'' Human Machine Interface Devices 800x480 24bits Touch Creen Panel
Basic Information
Place of Origin: China
Brand Name: Lensen
Certification: CE
Model Number: LS-HMI7
Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: standard carton
Delivery Time: 2-8 days
Payment Terms: T/T
Supply Ability: 6000pcs/month
Contact Now
Size: 7'' TFT Resolution: 800×480
Color: 24bits CPU: A8 600MHz 32bit
Serial: Male，RS485/RS232/RS422 Rated   Power: 7.2W
Highlight:

TFT Human Machine Interface Devices

,

800x480 Human Machine Interface Devices

,

24bits Human Machine Interface Display

7'' China HMI Supplier For Indstry Automation China Touch Creen Panel

7'' Human Machine Interface Devices 800x480 24bits Touch Creen Panel 0

Performance specification
Display size 7" TFT
Display area 154.08(W)x85.92(H)
Resolution 800*480 pixel
Display color 16.77M color
Display angle of view 70/70/50/70(left/right/up/down)
Contrast ratio 500:01:00
Backlight LED
Brightness 250cd/m2
Backlight life More than 30000 hours
Touch Panel 4 wire precision resistance network (surface hardness
4H)
CPU ARM RISC 32Bit 792MHz
Storage 128MB NAND Flash Memory+128MB DDR3 Memory
Memory extension 1 USB Host
RTC Built-in
Printer port USB Host/Serial port
Ethernet 10/100MHz self-adaption
Program download USB Slave/U disk/Ethernet
COM port COM0:RS232/RS485/RS422; COM2:RS232
Electrical specification
Rated power 3.6W @24VDC
Rated voltage DC10V～DC28V
Allowable loss of power <3ms
Insulation resistance Greater than 50MΩ@ 500V DC
Hi-pot test 500V AC 1 minute
Structure specification
Shell material engineering plastic
Dimensions(mm) 204mm*150mm*34mm
Cutout size(mm) 192mm*138mm
Weight 0.5Kg
Environment specification
Temperature of working environment 0～50.℃
Humidity of working environment 10～90% non-condensing
Storage environment temperature -20～60℃
Storage environment humidity 10～90% non-condensing
Sine vibration test 10～500Hz, 30m/s2, X, Y, Z direction/ hour
Cooling method Natural air cooling
Certification
Panel protection grade Conforming to IP65 certification(4208一93)
CE authentication Comply with EN61000-6-4:2007+A1:2011,EN61000-6-2:2005
