LS-WJ61 16DI Signal to RS485/232 Converter Signal Isolator for Industry Automation Control

LS-WJ61 16DI Signal to RS485/232 Converter Signal Isolator for Industry Automation Control
LS-WJ61 16DI Signal to RS485/232 Converter Signal Isolator for Industry Automation Control LS-WJ61 16DI Signal to RS485/232 Converter Signal Isolator for Industry Automation Control LS-WJ61 16DI Signal to RS485/232 Converter Signal Isolator for Industry Automation Control

Large Image :  LS-WJ61 16DI Signal to RS485/232 Converter Signal Isolator for Industry Automation Control

Product Details:
Place of Origin: China
Brand Name: LS
Certification: CE
Model Number: LS-WJ61
Payment & Shipping Terms:
Minimum Order Quantity: 2pc
Price: negociate
Packaging Details: standard
Delivery Time: 3-6 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000pcs
Detailed Product Description
Input: 16DI Output: RS232/RS485
Protocol: Modbus RTU Input Type: Dry Or Wet
High Light:

Modbus RTU AD DA Converter

,

DIN35 Rail Mounted AD DA Converter

,

16CH DI Signal Converter

LS-WJ61 series 16-ch DI Isolated Digital Signal to RS485/232 Module, Slim-line plastic housing with integral 35mm DIN rail mounting , terminals, power supply(8-32VDC)


LS-WJ61 16DI Signal to RS485/232 Converter Signal Isolator for Industry Automation Control 0

Features:
Sixteen channels isolated digital signal input, isolated RS-485/232 output Support 16-ch dry contact input or 16-ch wet contact input
Input/output:3000VDC isolation
Over voltage protection, reverse polarity protection
Can read level status of each channel via the RS-485/232 interface
3000VDC isolation between input and output

Wide power supply range: 8 ~ 32VDC
High reliability, easy programming, easy application
DIN35 Rail-mounted
Can program setting module address, baud rate
Support Modbus RTU communication protocol
Dimensions: 120 mm x 70 mm x 43mm


Applications:
level signal measurement, monitoring and control
RS-485 remote I / O, data acquisition
Intelligent building control, security engineering applications
RS-232/485 bus in industrial automation control system
Industrial signal isolation and long-term transmission
Equipment operation monitoring
Sensor signal measurement
Industrial data acquisition and recording
Medical, industrial product development
Switching signal acquisition


Digital signal input types:
1.Dry contact input
2.Wet contact input
3.Open collector input

Product List:
Type No.: WJ61-485 (input:16-ch digital signal,output:485 interface)
Type No.: WJ61-232 (input:16-ch digital signal,output:232 interface)



LS-WJ61 16DI Signal to RS485/232 Converter Signal Isolator for Industry Automation Control 1

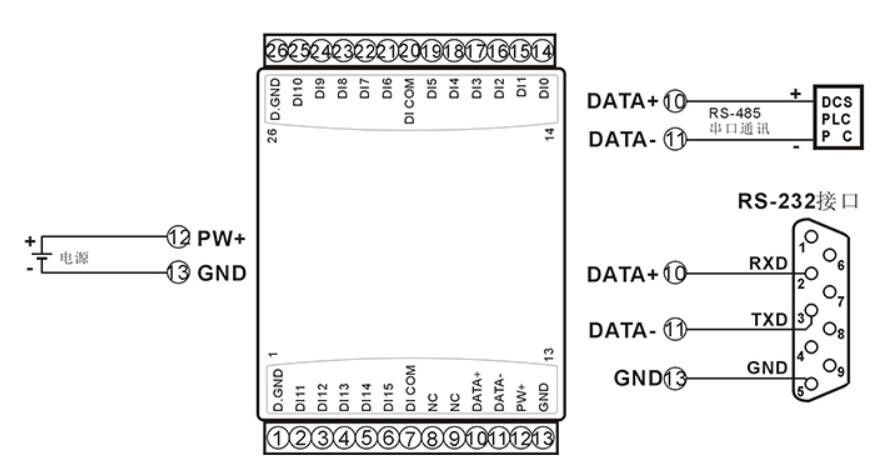

Diagram

LS-WJ61 16DI Signal to RS485/232 Converter Signal Isolator for Industry Automation Control 2
