| Inputs: | 4 Digital Inputs | Outputs: | 4 Relay Outputs |
|---|---|---|---|
| Power Output: | 1W | Frequency: | 433MHz |
| Distance: | 2km/5km/no Limit | Application: | ON-OFF Wireless Control |
| High Light: | 2km Wireless Control Module,433MHz Wireless Control Module,2km Wireless Cable Transmitter |
||
2km Wireless Control Module
4DI4DO Wireless Control Module Pump / Valve / Tank Level 433MHz / 868MHz / 915MHz I/O
1. General introduction

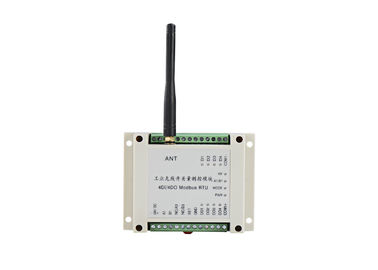

LS-RDIO0404 4DI4DO wireless I/O module, it has 4 digital inputs and 4 relay output. We have different module types to meet your different control ranges requirements
433MHz 100mW type for around 500m wireless control
433MHz 1W RF type for around 2km wireless control
433MHz 5W radio type for around 6km wireless control
868MHz 1W Lora type for around 5km wireless control
915MHz 1W Lora type for around 5km wireless control
4G type for no distance requirements wireless control
2. Application Field
LS-RDIO series I/O module is widely used in industry automation like factory central data process, pump control, tank level monitoring, Conveyor Control,oil monitoring, mining machinery, environment monitoring equipment, lifting devices, robots control, filling machine, mixing equipment, logistic line, AGV etc.
3. Parameter of RDIO0404
| Parameter | |
| Power output: | 1W or 100mW version |
| Power supply: | 9V-30V (usually choose 24V DC or 12V DC) |
| Control distance: | 3km or (1km version) |
| Baud rate: | 2400bps default |
| Receiving sensibility: | -123dBm@1200bps, -118dbm(9600bps) |
| Networking | |
| Networking: | Point to point and point to multipoints |
| Port Description | |
| Input: | 4 digital active inputs(passive customize) |
| Output: | 4 relay outputs, |
| Communication port | RS485 (wireless RS485 customize) |
| Current | |
| Transmit current: | <600mA (or 100mA version) |
| Receiving current: | <50mA (or 20mA version) |
| General | |
| Frequency: | 433MHz, 450, 470 or other band |
| Channel No: | 16 channels,can change via DIP switch |
| Physical Properties | |
| Dimension: | 115×90×40(mm) |
| Antenna Connector: | SMA,vehicle antenna with 1.5m cable |
| Temperature: | 35℃~+75℃( industrial) |
| Mounting method: | Standard 3.5 inch industrial guild rail |
4. How to use
5. Application example
Remarks:
| Master | Salve | Input and control correspondence |
| A(DI1) | B1(DO1) | DI1 of A control DO1 of B1 |
| A(DI2) | B2(DO1) | DI2 of A control DO1 of B1 |
| A(DI3) | B3(DO1) | DI3 of A control DO1 of B1 |
| A(DI4) | B4(DO1) | DI4of A control DO1 of B1 |
| A(DI5) | B5(DO1) | DI5 of A control DO1 of B1 |
| A(DI6) | B6(DO1) | DI6 of A control DO1 of B1 |
| A(DI7) | B7(DO1) | DI7 of A control DO1 of B1 |
| A(DI8) | B8(DO1) | DI8 of A control DO1 of B1 |
| A(DO1) | B1(DI1) | DO1 of A is controlled by DI1 of B1 |
| A(DO8) | B8(DI1) | DO8 of A is controlled by DI1 of B8 |
| Note: module A and B should use the same channel； | ||
