4-20mA Analog Wireless I O Module 2 Channels Free Band Wireless Control 2KM+

4-20mA Analog Wireless I O Module 2 Channels Free Band Wireless Control 2KM+
4-20mA Analog Wireless I O Module 2 Channels Free Band Wireless Control 2KM+ 4-20mA Analog Wireless I O Module 2 Channels Free Band Wireless Control 2KM+ 4-20mA Analog Wireless I O Module 2 Channels Free Band Wireless Control 2KM+ 4-20mA Analog Wireless I O Module 2 Channels Free Band Wireless Control 2KM+

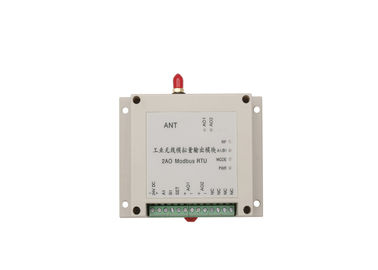

Large Image :  4-20mA Analog Wireless I O Module 2 Channels Free Band Wireless Control 2KM+

Product Details:
Place of Origin: China
Brand Name: Lensen
Model Number: LS-RAI02+LS-RAO02
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: Negotiation
Packaging Details: standard carton
Delivery Time: 2-6 days
Payment Terms: T/T, Western Union
Supply Ability: 6000pcs/month
Detailed Product Description
Power Output: 1W Frequency: 433MHz
Distance: 2km Channel: 2 Channels
Supply Voltage: 24V DC Interface: RS485
High Light:

remote i o module

,

remote io system

4-20mA Wireless Analog I/O module 2km wireless control 2AI and 2AO



Introduction



LS-RAI02 Modbus RTU is a 1W analog input module, 2 analog inputs, 1 RS485 port

LS-RAO02 Mobus RTU is a 1W analog output module, 2 analog output, 1RS485 port



LS-RAI02 Parameter

Frequency 433MHz or 450MHz or 470MHz or Lora
Power output 1W
Products 2AI
Input type 4-20mA or 0-5V or 0-10V
Output type 4-20mA or 0-5V or 0-10V
Resolution ratio 24 bit
Accuracy ±0.02%
Power supply 9-36V DC usually use 24V DC
Interface RS-485
Channel No. 16ch default, can program via DIP switch
Antenna Sucker antenna with 1.5m cable
Working temperature -35 °C ~ +75 °C industrial
Working humidity 10%-90% relative humidity, no condensation
Dimension 115×90×40(mm)
Fix way Standard 3.5 inch industrial DIN guild rail





LS-RAO02 parameter

Frequency 433MHz or 450MHz or 470MHz or Lora
Power output 1W
Products 2AO
Input type 4-20mA or 0-5V or 0-10V
Output type 4-20mA or 0-5V or 0-10V
Resolution ratio 24 bit
Accuracy ±0.02%
Power supply 9-36V DC usually use 24V DC
Interface RS-485
Channel No. 16ch default, can program via DIP switch
Antenna Sucker antenna with 1.5m cable
Working temperature -35 °C ~ +75 °C industrial
Working humidity 10%-90% relative humidity, no condensation
Dimension 115×90×40(mm)
Fix way Standard 3.5 inch industrial DIN guild rail





Application:

Wireless pump controls

Automate your tank level without running wire between the well pump and the tank. Wireless pump controls save you time and money.

Wireless tank level monitoring
simple wireless monitoring of your tank level from a remote location and receive critical status updates.

Smart agriculture

Pivot irrigation, soil pressure and temperature monitoring

Data Logging
Wirelessly acquire and log various data from a remote location using our analog I/O module

Stacker Control
Start and stop your stacker/reclaimir. Connect PLC in control center with stacker and reclaimer.

Sensor signal wireless collection

0-5V or 4-20mA signal wireless transmission



4-20mA Analog Wireless I O Module 2 Channels Free Band Wireless Control 2KM+ 0
