Pump ON-OFF Control System According the Float Switch High Or Low Level

Basic Information
Place of Origin: China
Brand Name: Lensen
Certification: FCC
Model Number: LS-RDIO0202
Minimum Order Quantity: 2pcs
Price: Negotiation
Packaging Details: standard carton
Delivery Time: 2-7 days
Payment Terms: T/T, Western Union
Supply Ability: 6000pcs/month
Frequency: 915MHz Power Output: 1W
Input: 2 Digital Inputs Output: 2 Relay Outputs
High Light:

1W Wireless Modbus RTU

,

915MHz Wireless Modbus RTU

,

1W Wireless Pump ControlLer

1W Wireless Modbus RTU



LS-RDIO0202 wireless I/O module 2 digital inputs 2 relay output 2km wireless control



Introduction

LS-RDIO0202 Modbus RTU is a 1W I/O module, 2 isolated digital inputs, 2 isolated relay outputs, 1 RS485 (wireless RS485 customizes). Wireless control 2km-3km. Use for pump control, water level monitoring, motor, valve, light ON-OFF control.



Transparent I/O System, no programming required

Not need internet, no third party cell, no monthly fees

You have full control over your own carrier

Real time status feedback from the remote site

Fast installation and easy setup



Parameter
Power output: 600mW
Wireless technology: Lora
Power supply: 9V-30V (usually choose 24V DC or 12V DC)
Control distance: 5km LOS
Baud rate: 2400bps
Receiving sensibility: -123dBm@1200bps, -118dbm(9600bps)
Networking
Networking: Point to point and point to multipoint
Protocol: Modbus RTU protocol
Port Description
Input: 2 active inputs (passive customize), isolated
Output:

2 passive relay outputs, isolated

contact max load AC250V/5A,DC30V/5A

(active outputs 0-5V customize)

Communication port RS485 (wireless RS485 customize)
Current
Transmit current: <350mA
Receiving current: <20mA
General
Frequency: 915MHz
Channel No: 16 channels, can change via DIP switch
Physical Properties
Dimension: 115×90×40(mm)
Antenna Connector: SMA,vehicle antenna with 1.5m cable
Temperature: -35℃~+75℃( industrial)
Mounting method: Standard 3.5 inch industrial guild rail





Application:

Advantage

- No wires to bury or maintain, no need to drill holes on wall

- Reliable communication in all direction,any terrain, regardless of hills, walls, trees

- Cost saving in installation and maintenance

- Radio based, no need internet and monthly fee, full ownership of the system

- 4G based, high speed, no distance limit





Lensen Wireless RTU features

- Portable device, DIN-rail mounting for easy installation

- Isolated inputs

- LEDs for power supply, communication, input, output status

- Flexible networking, point to point or point to multipoints

- DIP to change different modes

- Different types of I/O, DI, DO, AI, AO are available

- I/O expandable

- Short delay time

- Support I/O reduction, field input, remote output

- Easy handing on RS485 network, support Modbus RTU protocol

- Support on-line upgrade. Can configure by customer in setting mode

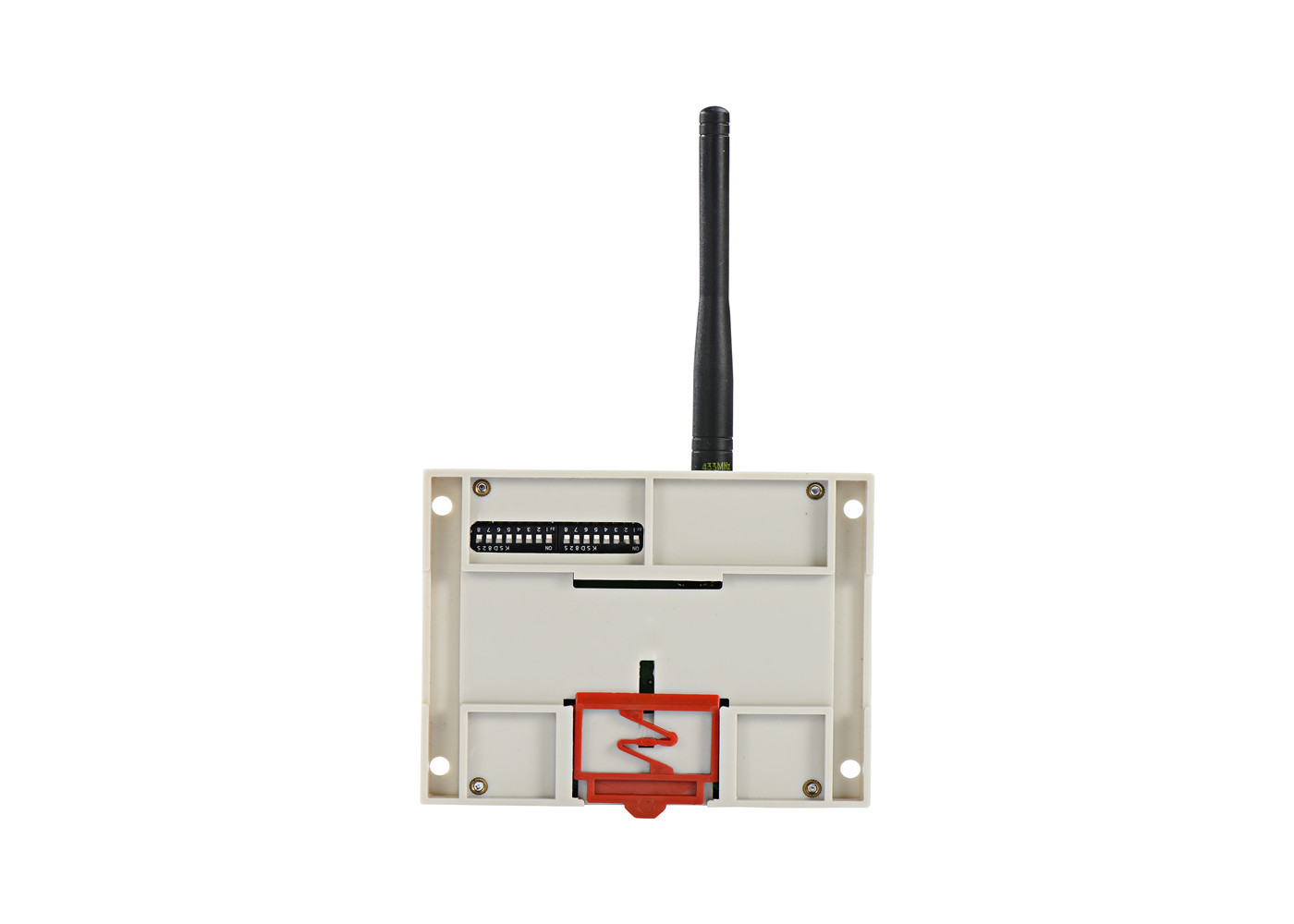

Pump ON-OFF Control System According the Float Switch High Or Low Level 0

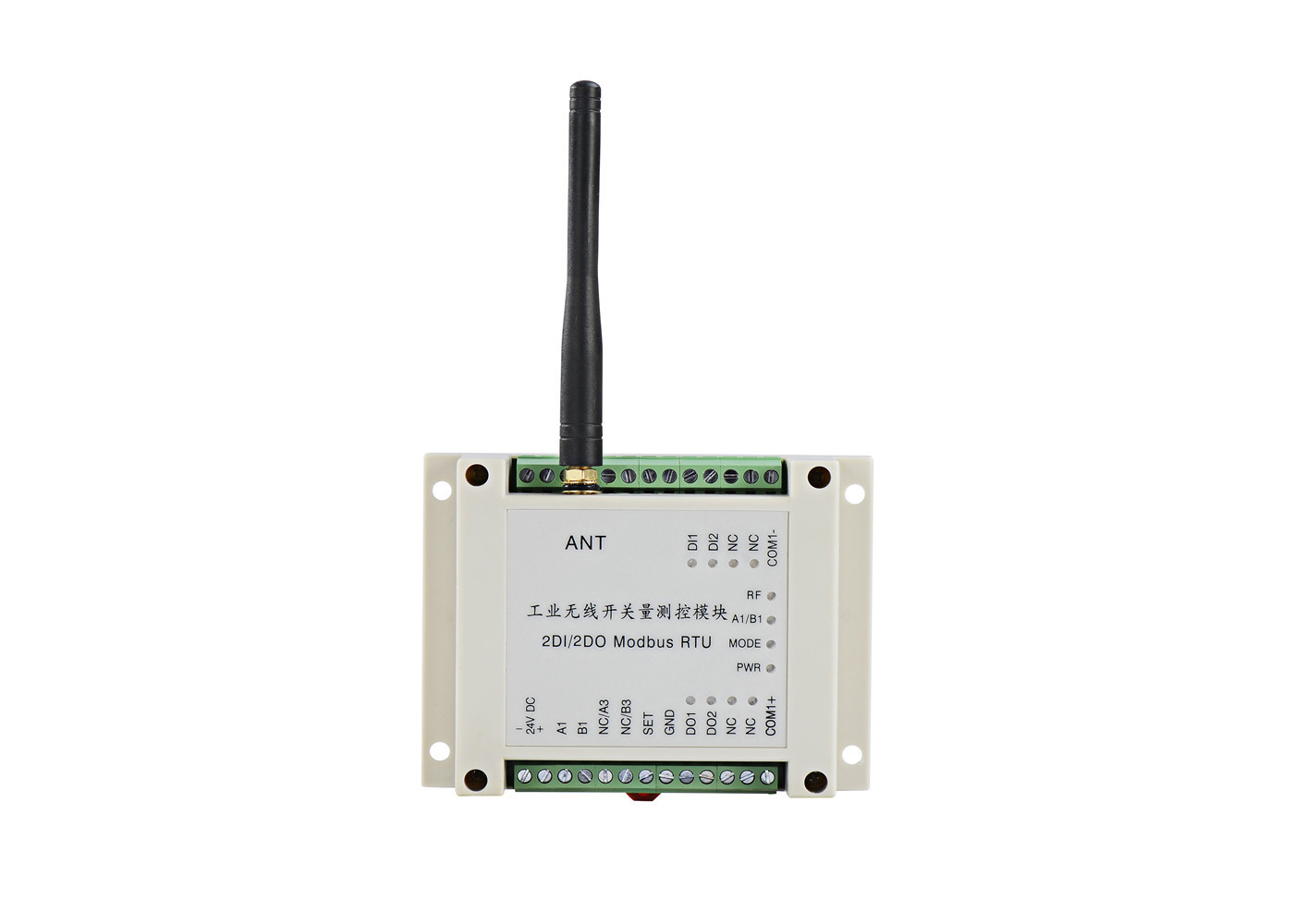

Pump ON-OFF Control System According the Float Switch High Or Low Level 1

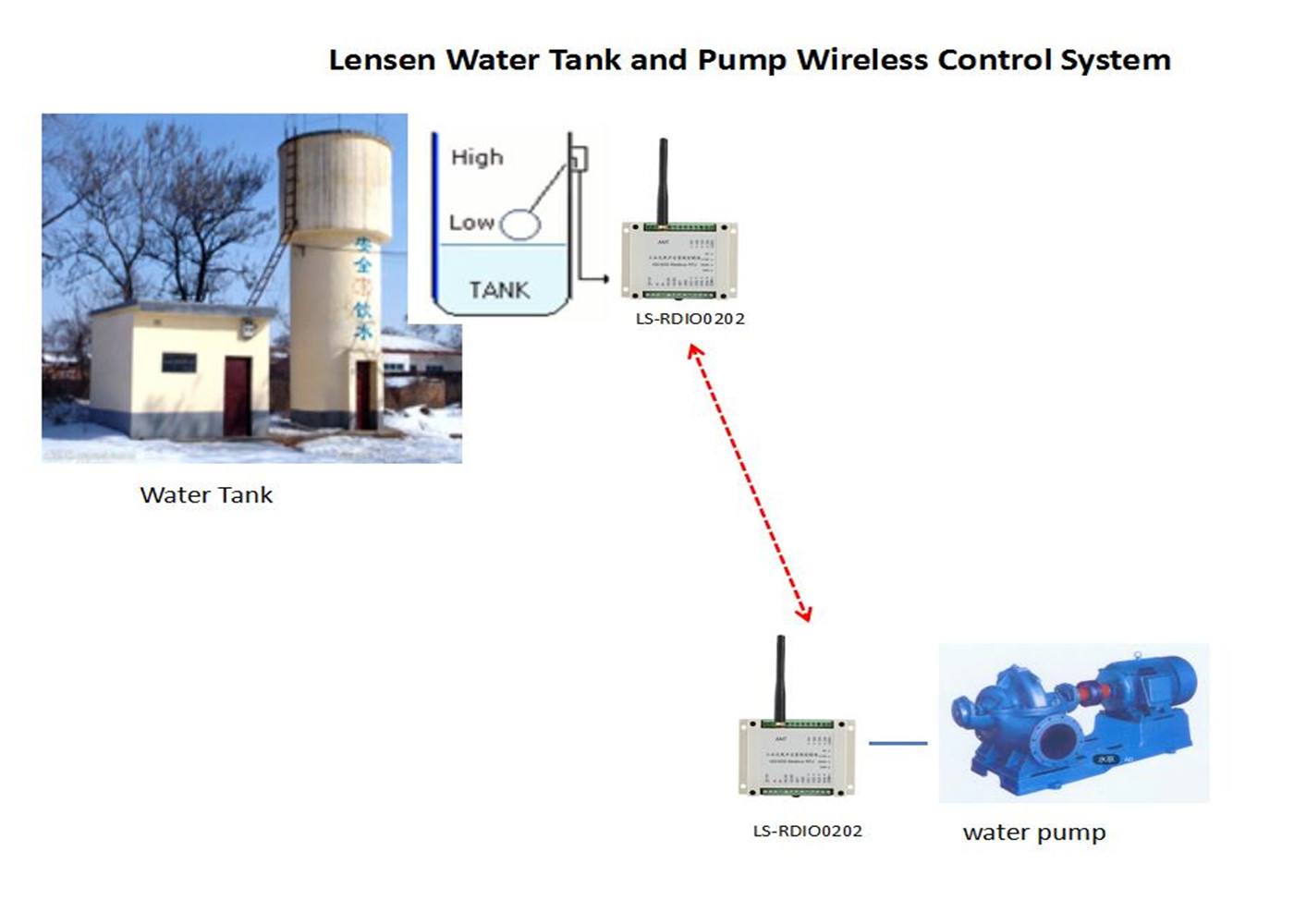

Pump ON-OFF Control System According the Float Switch High Or Low Level 2
