RTD/TC Input Digital Signal Isolator Analog Output 0-5V 4-20mA Converter 24V DC

Basic Information
Place of Origin: China
Brand Name: LS
Certification: CE
Model Number: THS-TPXX
Minimum Order Quantity: 1pc
Price: negociate
Packaging Details: standard
Delivery Time: 3-6 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000pcs
Input: RTD/TC/Potentiometer Output: 4-20mA Or 0-5V
Mounting Way: Din-rail Mounting Power Supply: 24V DC
High Light:

din rail isolator

,

signal isolation transmitter

Input

Input signal: PT100, Cu50, Ni1000 and other thermal resistance; B, E, J, K, N, R, S, T and other thermocouples; voltage (maximum range 0-10V); millivolts (maximum range 0-100mV); Current source (4- 20mA); transmitter (distribution), current 4-20mA; resistor, potentiometer (maximum range 0-2K)

Distribution voltage: ≥16V

Measuring range: depending on the type of sensor used



Output

Output signal: 4-20mA; 0-20mA; 0-5V; 0-10V

Output load resistance: RL ≤ 500Ω (when the output is a current signal); RL ≥ 10KΩ (when the output is a voltage signal)



Basic parameters

Power supply: DC24V, ±10%

Current consumption: ≤50mA (one input and one output 24V power supply, 20mA output); ≤70mA (one input and two output, 24V power supply, 20mA output)

Basic accuracy: 0.1% F.S.

Response time: 0.5S

Insulation strength: 1500V AC / 1min (between input, output, and power)

Insulation resistance: ≥100MΩ (between input, output, and power)

Operating temperature range: -20~+55 degrees

Electromagnetic compatibility: in accordance with GB/T 18268 (IEC61326-1)



Parameter
THS-TP X X X marks
Configuration 1     1 input 1 output
2     1 input 2 output
Input signal U

General signal input

(RTD, TC, Potentiometer)

Please indicate signal type and measure range

Output signal 1 4-20mA
2 0-20mA
4 0-5V
6 0-10V
Please indicate your required input type and output type when place order

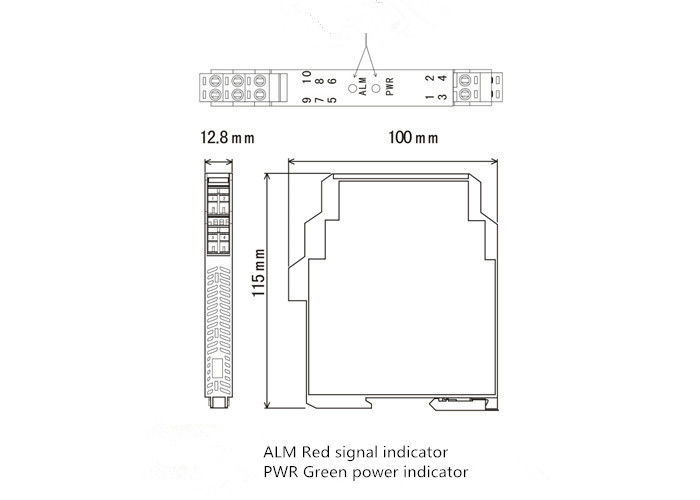

Dimension

RTD/TC Input Digital Signal Isolator Analog Output 0-5V 4-20mA Converter 24V DC 0

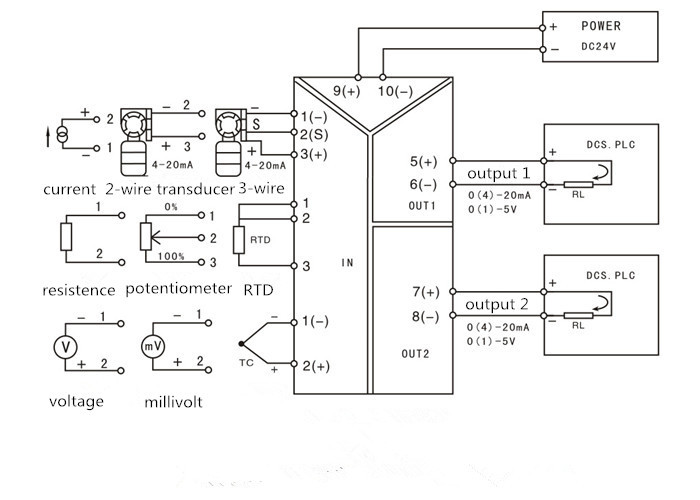

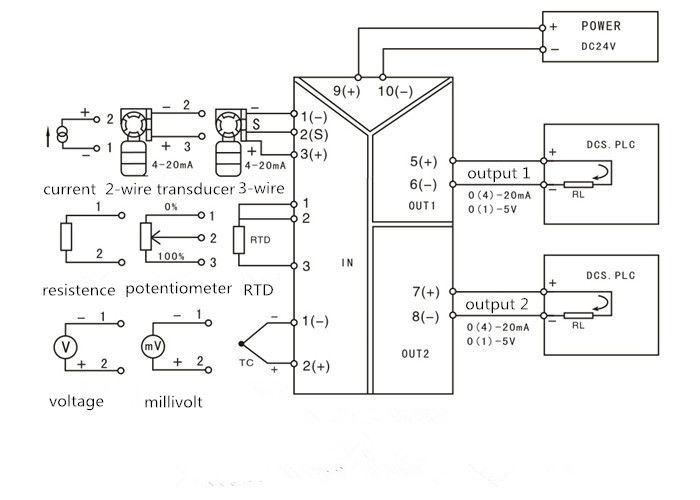

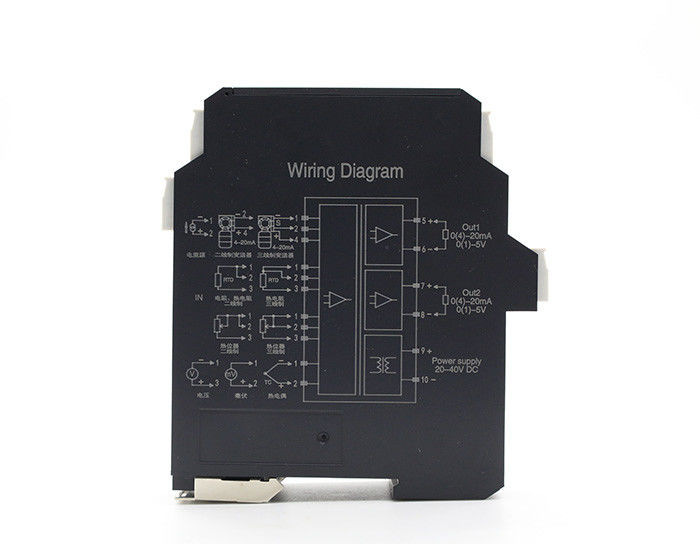

How to wire
